What Can a Quadratic Testing Machine Measure in Manufacturing Quality Control?

A small dimensional error can create a big quality problem. One wrong hole position, radius, or angle may cause poor assembly, unstable cutting, or rejected parts.

That is why Dimension Measurement is a core part of manufacturing quality control. A Quadratic Testing Machine helps manufacturers inspect part size, contour, angle, radius, hole position, and visible defects through optical, non-contact measurement.

In this article, you will learn what a Quadratic Testing Machine can measure, where it is used, and how it supports CNC tool grinding, precision hardware, molds, electronics, and other inspection tasks.

What a Quadratic Testing Machine Can Measure

A Quadratic Testing Machine supports many inspection tasks. Its main value is not only measuring size. It helps operators confirm whether a part matches its drawing.

Basic Dimension Measurement

It measures length, width, diameter, distance, and spacing. These checks are common in product dimension inspection.

Typical measured items include:

This type of 2D dimensional measurement is useful for incoming inspection, process inspection, and final quality control.

Radius Measurement

A quadratic testing machine can measure corner radii, arc profiles, and rounded edges. Radius measurement is important when the part must fit, seal, cut, or rotate correctly.

In tool grinding, radius errors may affect cutting force. In molds, radius errors may affect product release. In hardware parts, they may create stress concentration.

Angle Measurement

The machine can inspect chamfers, tapers, tool edges, and part alignment. Angle measurement is especially useful for precision machining and tool production.

For CNC tool grinding, operators can check cutting angles after grinding. This helps confirm the tool profile before it enters production.

Hole Position Measurement

A part may have the correct hole size but wrong hole location. This still causes assembly failure.

A quadratic testing machine supports hole position measurement. It can check hole centers, center distance, pitch, and relative location.

This is useful for fixtures, plates, connectors, molds, and electronic housings.

Contour Measurement

Contour measurement checks the shape of a part. It compares edges, outlines, and profiles against expected geometry.

It is useful for:

• Cutting tools

• Mold cavities

• Stamped parts

• Gaskets

• Connectors

• Small machined parts

For tool grinding applications, contour inspection helps verify the final tool profile.

Flatness Inspection and Height-Related Checks

Some quadratic systems support 2.5D measurement. They may inspect step height, surface position, or related height features.

The SX Series product information shows support for 2D and 2.5D measurement software. It can also add probes for trigger measurement and height measurement.

This does not replace a full 3D CMM. But it can handle many workshop-level checks.

Visual Defects

A quadratic testing machine can also support visual defect inspection. It may help identify burrs, missing edges, cracks, stains, deformation, or surface marks.

This depends on lighting, optics, software, and operator settings. It works best when defect standards are clearly defined.

Tip： Build a clear inspection checklist before measuring production batches.

Why Dimension Measurement Matters in Manufacturing Quality Control

Manufacturing quality control depends on repeatable inspection. A part must not only look correct. It must meet the required tolerance.

It Prevents Downstream Assembly Problems

Small dimensional errors often appear later. They may cause loose fitting, tight assembly, vibration, leakage, or product failure.

Dimension Measurement helps catch these risks earlier. It reduces scrap, rework, and customer complaints.

It Supports Process Adjustment

Measurement results help operators adjust machines. They can correct tool wear, grinding deviation, fixture error, or cutting drift.

This is important for CNC tool grinding. After grinding, the tool can be inspected before use. If the profile is wrong, operators can adjust the grinding process.

It Improves Inspection Consistency

Manual tools depend heavily on operator skill. Calipers and micrometers work well for simple sizes. But they are less useful for complex contours and small visual features.

A vision measuring machine makes inspection more visual and repeatable. It also helps store images and measurement results.

It Supports Quality Records

Many B2B buyers need inspection reports. A digital precision measurement system can help record values, images, and tolerance decisions.

This improves traceability. It also supports supplier audits and repeat orders.

Tip： Use the same datum points across all inspection reports.

Key Machine Features Behind Accurate Measurement

A Quadratic Testing Machine must stay stable, clear, and repeatable. Accuracy depends on more than software.

Optical Lens and Camera

The lens and camera affect edge clarity. Better imaging helps operators find points, lines, circles, and contours.

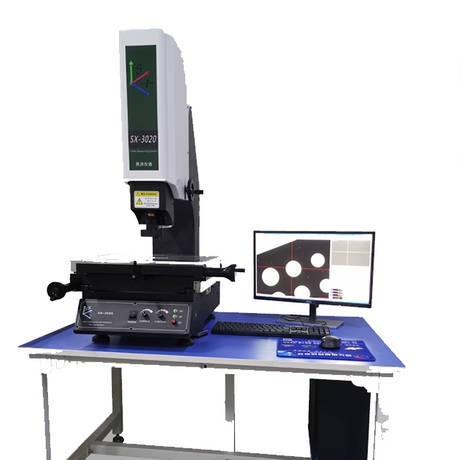

The SX Series Manual Quadratic Image Meter uses a high-resolution color CCD camera. It also uses a manual continuous zoom lens.

This supports clear observation of small features.

Granite Base and Worktable Stability

A stable base reduces vibration and movement error. The SX Series uses a high-precision granite base and column.

This is important for repeatable Dimension Measurement. Poor machine stability can create false readings.

Guide Rail and Screw Drive

Smooth movement supports stable X, Y, and Z inspection. Good guide rails help operators move the worktable precisely.

This matters when checking many points across one part.

Lighting Control

Lighting affects edge recognition. Poor lighting can hide burrs, create shadows, or blur outlines.

LED cold light and adjustable brightness help operators inspect different materials. Reflective parts may need extra care.

Common Manufacturing Applications

A Quadratic Testing Machine is not limited to one industry. It supports many inspection scenarios.

CNC Tool Grinding

It can inspect tool profile, angle, radius, edge shape, and grinding consistency. This makes it useful beside CNC tool grinding machines.

After grinding, operators can check whether the tool meets drawing requirements. This supports better cutting performance and fewer tool defects.

Mechanical Parts

It can inspect plates, shafts, brackets, fasteners, and machined parts. These parts often require length, hole, angle, and contour checks.

For small batches, it works well as workshop inspection equipment.

Mold and Die Components

Mold parts require accurate edges, cavities, holes, and insert sizes. A non-contact system helps protect polished surfaces.

It also helps detect small geometry errors before mold assembly.

Electronics and Mobile Phone Parts

Small electronic parts often have fine features. Contact tools may be slow or risky.

A non contact measurement method helps inspect tiny edges, holes, slots, and outlines.

Precision Hardware

Precision hardware needs stable inspection across batches. A quadratic testing machine helps verify dimensions, profiles, and visible defects.

It can support both first-article inspection and routine sampling.

Quadratic Testing Machine vs Traditional Measuring Tools

Different inspection tools serve different needs. The best choice depends on part geometry and tolerance.

Compared With Calipers

Calipers are fast and affordable. But they struggle with small contours, complex angles, and soft parts.

A quadratic testing machine gives clearer visual measurement.

Compared With Profile Projectors

Profile projectors help inspect outlines. But many image measuring systems offer better software tools and data output.

This helps when inspection records are required.

Compared With CMM Systems

A CMM is stronger for full 3D geometry. A quadratic testing machine is often better for flat parts, small visual features, and quick shop-floor checks.

They can also work together in one quality system.

How to Choose a Quadratic Testing Machine

The right machine should match real inspection needs. Bigger is not always better.

Match Measuring Travel to Part Size

Check the largest part size first. Then leave space for fixtures and movement.

The SX manual series includes different travel ranges. This helps buyers match equipment to part size.

Check Resolution and Measurement Uncertainty

Resolution should match tolerance needs. A low-cost machine may look suitable but fail strict inspection.

Ask suppliers for accuracy, repeatability, and calibration details.

Confirm 2D and 2.5D Needs

Some parts only need 2D checks. Others need height, step, or probe-assisted inspection.

For tool grinding and precision hardware, 2.5D capability may add value.

Review Software Functions

Useful software should measure points, lines, circles, angles, radii, distance, and contours.

It should also support reports, image saving, and tolerance judgment.

Practical Tips for Reliable Measurement Results

Good equipment still needs correct operation. Measurement quality depends on setup discipline.

Clean the Part First

Oil, dust, burrs, and chips can affect results. Clean each part before inspection.

This is especially important for reflective metal parts.

Fix the Part Securely

Movement during measurement creates unreliable data. Use suitable fixtures for thin, small, or irregular parts.

A stable fixture improves repeatability.

Use Consistent Magnification

Changing magnification may change edge selection. Keep the same lens setting for repeated inspections.

This helps compare batch results fairly.

Train Operators on Datum Selection

Operators must select the correct reference points. Wrong datums create wrong results.

Training should cover drawings, tolerances, edges, and measurement sequence.

Tip： Repeatability often depends more on method than machine price.

Conclusion

A Quadratic Testing Machine can measure many quality-critical features. It supports Dimension Measurement, contour measurement, angle measurement, radius measurement, hole position measurement, flatness inspection, and visible defect checks.

In manufacturing quality control, it helps reduce uncertainty. It also helps operators catch dimensional problems before assembly or shipment.

For CNC tool grinding, it can inspect tool geometry after grinding. For other industries, it supports mechanical parts, molds, electronics, mobile phone parts, and precision hardware.

The best machine should match part size, tolerance, software needs, and operator workflow. When used correctly, it becomes practical quality inspection equipment for modern factories.

FAQ

Q: What does a Quadratic Testing Machine measure?

A: It measures dimensions, angles, radii, contours, holes, and visible defects.

Q: Why is Dimension Measurement important in quality control?

A: Dimension Measurement helps prevent poor fit, rework, assembly errors, and rejected parts.

Q: Can it support CNC tool grinding inspection?

A: Yes. It checks tool profiles, edge angles, radii, and grinding consistency.

Q: Is it better than calipers?

A: It is better for contour measurement, small features, and non contact measurement.

Q: What affects measurement accuracy?

A: Lighting, lens quality, calibration, fixture stability, and operator method affect results.

Q: Is a Quadratic Testing Machine expensive?

A: Cost depends on travel range, camera, software, accuracy, and 2D or 2.5D functions.
