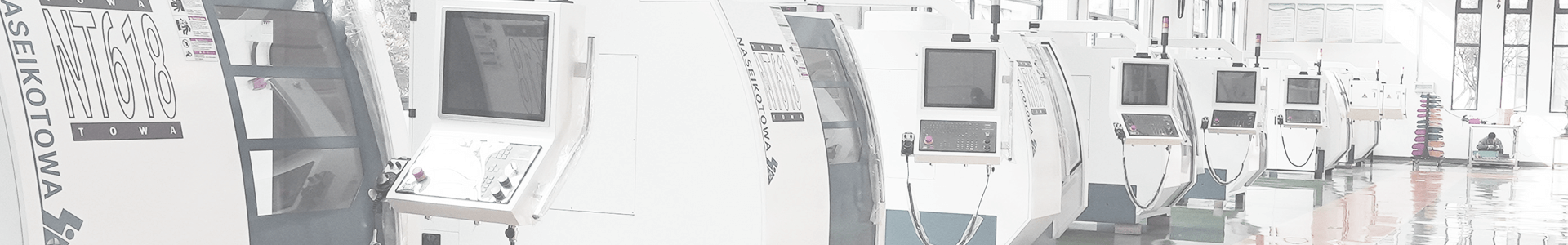

NASEIKO CNC Tool Grinder Series Overview
The CNC tool grinding machine series is designed for precision grinding and regrinding of cutting tools, providing stable multi-axis CNC control for modern tool manufacturing. The product range includes four axis four linkage and five axis five linkage CNC tool grinding machines, with a six axis six linkage CNC tool grinding machine included in the series. Four axis four linkage models are positioned as economical solutions for normal precision cutting tool grinding, while five axis five linkage models are designed according to the inspection of German five axis CNC tool grinding technology and developed by combining designers’ practical experience with on-site communication in real tool production environments. Across the series, CNC tool grinding machines are used for carbide cutting tool grinding, particularly in 3C industry tool production. The machines support grinding processes for milling cutters, drills, forming tools and rotary burrs, and the product line also includes models for tap and thread grinding as well as non-standard cutting tool processing. The series is suitable for both cutting tool manufacturing and regrinding applications where stable CNC control, flexibility and practical production adaptability are required.
Built for Stable and Precise Tool Grinding
Rigid Mineral Casting Machine Structure
The CNC tool grinding machine features an integral mineral casting machine bed, which forms the rigid base of the machine structure. This feature helps the machine maintain stability during continuous grinding operations and supports consistent positioning when grinding cutting tools with high accuracy requirements.
Constant Torque Spindle for Consistent Grinding Performance
A permanent magnet constant torque spindle motor is used to provide stable spindle performance during tool grinding. This feature supports steady grinding conditions across different processes, helping maintain consistent cutting tool geometry during both manufacturing and regrinding operations.
Dual Grinding Head Design on Selected Models
Selected models are equipped with a dual grinding head structure, allowing different grinding processes to be carried out within the same machine. This feature improves operational flexibility when handling various cutting tool types and supports efficient processing of more complex tool shapes.
SYNTEC CNC System for Multi Axis Tool Grinding
The machine is controlled by a SYNTEC CNC control system, which enables coordinated multi-axis movement during tool grinding. This feature supports accurate control of tool geometry and repeatable grinding results in daily production.
Application Scenarios
As cutting tools go through production, use, and maintenance, this CNC tool grinding machine is applied in different manufacturing settings to support those stages.
Maintaining Cutting Tool Condition on 3C Production Lines
In 3C manufacturing, cutting tools—especially carbide tools—are used at high frequency and wear occurs quickly. In this scenario, the CNC tool grinding machine is mainly used to regrind cutting tools that are already in production, restoring edge geometry and cutting condition after wear. Rather than replacing tools frequently, production teams use the machine to keep tools in a usable and stable state, helping maintain machining accuracy and surface quality over long production runs. Here, the CNC tool grinding machine functions as a tool condition maintenance solution that supports production continuity and process stability.
Manufacturing and Regrinding Cutting Tools in Tool Rooms
In tool rooms and production support areas, the CNC tool grinding machine is used to manufacture new cutting tools and regrind worn tools as part of internal tool management. Operators grind tools to required geometries and restore tools after use, enabling repeated regrinding throughout the tool’s service life. This application allows manufacturers to manage tool quality and tool cost internally, rather than relying entirely on external tool suppliers. The machine supports a controlled and repeatable workflow for both tool creation and regrinding, making it an essential part of daily tool room operations.
Grinding Multiple Cutting Tool Types on One CNC Platform
In workshops that handle diverse machining tasks, different cutting tool types are used side by side. In this scenario, the CNC tool grinding machine is applied to grinding milling cutters, drills, forming tools and rotary burrs, with the product range also covering tap and thread grinding. The key role of the machine here is to replace multiple single-purpose grinders with one flexible CNC platform. By handling different tool structures on the same machine, manufacturers can adapt to changing production needs while keeping equipment layout and grinding workflows simple.
Practical Advantages in Daily CNC Tool Grinding
Easier Control of Cutting Tool Grinding Quality
This CNC tool grinding machine series is designed to help users control cutting tool grinding quality more consistently during daily production. By relying on stable CNC-controlled grinding processes rather than manual adjustment alone, tool geometry becomes more predictable from one grinding cycle to the next. For manufacturers, this means cutting tools perform more consistently in machining, reducing variation between tools and lowering the risk of quality issues caused by uneven tool conditions. In both tool manufacturing and tool regrinding, consistent grinding quality makes production results easier to manage over time.
Right Machine Selection Without Unnecessary Investment
Choosing the right CNC tool grinding machine is not only a technical decision, but also a cost decision. By clearly separating four-axis solutions for normal precision cutting tools and five-axis solutions for more complex tool geometries, this product line allows users to match machine capability to real tool requirements. This structured approach helps avoid over-investment in equipment that exceeds actual production needs, while still providing room to handle more complex tools when required. As a result, manufacturers can control equipment cost while maintaining practical grinding capability.
Practical CNC Tool Grinding That Fits Workshop Operation
Unlike machines designed only to demonstrate theoretical capability, this CNC tool grinding machine series is developed based on real workshop use and tool production experience. The focus is on stable operation, repeatable grinding processes and day-to-day usability in actual manufacturing environments. This practical orientation reduces the gap between machine function and production reality, making CNC tool grinding easier to integrate into existing workflows. For operators and production teams, this translates into smoother operation and fewer disruptions during long-term use.
Long-Term Value for Tool Management and Production Planning
This CNC tool grinding machine series supports both cutting tool manufacturing and tool regrinding on a single CNC grinding platform. By using one consistent system to manage tools throughout their service life, manufacturers can simplify tool-related workflows and maintain clearer control over tool usage. Over time, this approach supports more predictable tool planning and helps reduce unnecessary tool replacement. For companies that rely heavily on cutting tools, long-term tool management becomes more structured and cost-effective.
Why Choose Us
Built on proven CNC grinding concepts and refined through practical tool production experience.
Designed from Proven CNC Grinding Concepts
One Product Range for Different Tool Grinding Requirements
A Consistent Platform for Tool Manufacturing and Regrinding
Customer Feedback
Production Manager
We use this CNC tool grinding machine mainly for carbide tool regrinding, and the consistency has been very reliable. Tool geometry is easier to control, which helps keep machining quality stable.
Tool Room Supervisor
The machine fits well into our tool room workflow. Grinding new tools and regrinding worn tools on one platform makes daily tool management much easier.
Manufacturing Engineer
What we value most is practicality. The machine supports different tool types and integrates smoothly into daily production without unnecessary complexity.
Operations Manager
We selected this CNC tool grinding machine for long-term use. Performance has remained stable during continuous operation for regular tool grinding tasks.
Related Product
FAQs
Contact Us
Get in touch to learn more about CNC tool grinding solutions. Share your cutting tool applications and production needs, and we will provide practical information to support your evaluation process.
