Views: 0 Author: Site Editor Publish Time: 2025-11-14 Origin: Site
In today’s highly competitive industrial landscape, precision and efficiency are key drivers of success. Traditional manufacturing processes, although reliable in their time, are increasingly unable to meet the demands of modern production. Enter the CNC step grinding machine—a transformative technology that has revolutionized the way industries approach tool grinding and precision manufacturing.
These machines combine multi-axis CNC control, advanced automation, and intelligent software integration to deliver unparalleled accuracy and repeatability. By automating complex grinding processes, manufacturers can produce intricate tool geometries that were once difficult or impossible with conventional grinders. This not only enhances production efficiency but also ensures consistent quality, reduces human error, and allows industries to achieve higher productivity without increasing labor costs.
The rise of CNC step grinding machines is part of a broader industrial transformation. From automotive and aerospace to electronics and medical device manufacturing, these machines are redefining what is possible in precision engineering. By enabling rapid, precise, and automated tool production, they are helping manufacturers remain competitive in a world that demands quality, speed, and reliability.
Before the advent of CNC step grinding machines, traditional grinding methods dominated tool production. While conventional grinders served their purpose, they came with several limitations that hindered efficiency and precision.
Traditional grinding relies heavily on manual operation, requiring skilled operators to carefully adjust settings, monitor the grinding process, and make corrections. This dependency increases the risk of human error, inconsistency in tool quality, and longer production cycles.
Conventional grinding machines struggle with intricate tool geometries, especially when multiple steps, tapers, and curved surfaces are involved. Achieving tight tolerances and consistent surface finishes often requires multiple setups and adjustments, which are both time-consuming and costly.
The need for repeated setups, calibration, and tool repositioning in traditional grinding methods leads to higher downtime and lower overall productivity. Additionally, frequent adjustments increase the risk of errors and tool rejection, adding to operational costs.
Manual grinding processes are less efficient in terms of material usage, energy consumption, and labor allocation. Wasted material, longer production cycles, and inconsistent quality contribute to higher overall manufacturing costs, making it challenging to meet modern industrial standards.
The emergence of CNC step grinding machines has transformed these challenges into opportunities for precision, efficiency, and automation.

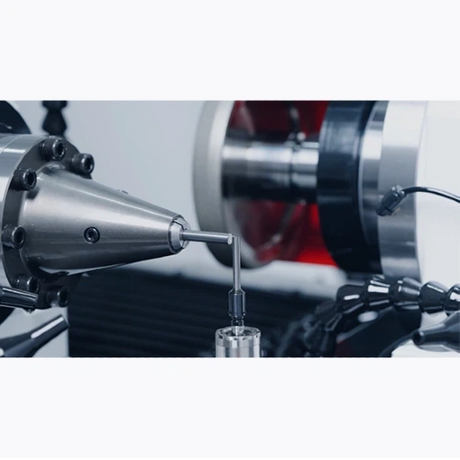

CNC step grinding machines utilize multiple axes—typically X, Y, Z, and rotational axes—to achieve complex tool geometries in a single setup. This multi-axis control allows precise positioning and synchronized movement of both the grinding wheel and the workpiece. As a result, manufacturers can grind steps, tapers, and intricate profiles with micron-level accuracy.
Advanced CNC software enables automated tool path calculation, feed rate adjustment, spindle speed control, and process monitoring. The software allows operators to input tool specifications, desired step angles, and surface finish requirements, while the machine automatically executes the grinding process with minimal intervention.
The spindle and grinding wheel are central to achieving accurate material removal. High-speed, precision spindles coupled with CBN, diamond, or aluminum oxide grinding wheels enable efficient cutting of hard metals such as tungsten carbide and high-speed steel. Many machines include automatic wheel dressing and balancing systems to maintain consistent grinding quality and extend wheel life.
Modern CNC step grinding machines are equipped with peripheral systems that streamline production:
Coolant and filtration units for optimal temperature control and chip removal
Dust extraction systems to maintain clean working conditions
Automatic loading and unloading systems for continuous operation
Tool holders and fixtures designed to ensure stable positioning
These peripherals reduce downtime, improve safety, and enhance overall machine efficiency.
The transformative impact of CNC step grinding machines can be seen across multiple industries.
High-precision engine components, transmission tools, and gears require extremely tight tolerances. CNC step grinding machines allow manufacturers to produce these tools consistently and efficiently, improving engine performance, reliability, and durability. By reducing the need for multiple setups, production cycles are shortened and operational costs are lowered.
Aerospace components such as turbine blades, nozzles, and precision fasteners demand complex geometries and precise material removal. CNC step grinding machines provide the multi-axis capability and accuracy needed to meet these strict requirements. The ability to grind multiple steps in a single setup ensures consistent quality while maintaining tight tolerances critical to aerospace safety standards.
In the electronics sector, small-diameter cutting tools are essential for producing high-density circuits, micro-components, and precise instruments. CNC step grinding machines can handle these intricate tools with high repeatability, ensuring surface finish quality and dimensional accuracy. This capability supports mass production without sacrificing precision.
Medical devices and optical instruments often require tools with fine features and extremely tight tolerances. CNC step grinding machines enable manufacturers to achieve the necessary precision, allowing for the production of surgical tools, precision instruments, and optical components that meet stringent quality standards.
CNC step grinding machines offer micron-level accuracy and repeatability. This ensures consistent tool geometry and surface finish across large production batches, reducing tool rejection rates and improving product reliability.
By grinding multiple steps and surfaces in a single setup, CNC step grinding machines significantly reduce setup time and overall cycle duration. This translates into higher throughput and faster delivery times for manufacturers.
Automation reduces dependency on operator skill, decreasing the likelihood of human error. Consistent tool production improves quality, lowers waste, and enhances overall operational efficiency.
CNC step grinding machines extend tool lifespan by ensuring precise material removal, uniform wear, and optimal surface finish. Reduced tool rejection, lower material waste, and minimized labor costs contribute to a favorable return on investment.
These machines integrate seamlessly into modern manufacturing workflows, supporting Industry 4.0 initiatives. Real-time monitoring, data collection, and predictive maintenance capabilities further enhance productivity and reduce downtime.
Benefit | Description |
Enhanced Accuracy | Micron-level precision and repeatable tool geometry |
Faster Production | Multi-step grinding in one setup reduces cycle time |
Reduced Human Error | Automation ensures consistent quality and lowers dependency on operators |
Cost Efficiency | Lower material waste, tool rejection, and labor costs |
Smart Manufacturing Support | Enables Industry 4.0 integration with real-time monitoring and analytics |
CNC step grinding machines are not standalone tools—they are central to modern automated manufacturing workflows.
Streamlining Production Lines: Multiple grinding operations can be performed in a single setup, reducing manual handling and setup time.
Continuous Operation: Peripheral systems like automatic loaders allow machines to run with minimal downtime.
Optimized Resource Utilization: Precise control of feed rates, spindle speed, and coolant usage reduces energy consumption and waste.
Digital Manufacturing Integration: CNC step grinding machines generate data for predictive maintenance, process optimization, and digital quality control, supporting smart factory operations.
Proper maintenance is critical to sustaining the precision and performance of CNC step grinding machines.
Maintenance Area | Best Practices |
Machine Bed & Frame | Regular cleaning, alignment checks, and vibration monitoring |
Grinding Wheel | Periodic dressing, replacement of worn wheels |
CNC Controller & Software | Software updates, backups, error log monitoring |
Spindle & Motors | Lubrication, thermal monitoring, and inspection for unusual noises |
Coolant & Filtration | Regular replacement, filter cleaning to prevent contamination |
Peripherals | Inspect and maintain automatic loaders, fixtures, and dust collection systems |
Routine maintenance ensures that machines maintain high accuracy, minimize downtime, and deliver consistent production quality over years of operation.
Selecting the ideal CNC step grinding machine requires careful evaluation:
Production Needs: Volume, tool complexity, and tolerance requirements
Machine Specifications: Number of axes, spindle power, wheel compatibility, and software capabilities
Brand Reliability: Technical support, spare parts availability, and after-sales service
Cost vs Performance: Total cost of ownership, including energy, maintenance, and expected ROI
By choosing the right machine, manufacturers can fully leverage the benefits of automation, precision, and efficiency.
CNC step grinding machines have truly transformed manufacturing industries by enabling high-precision, automated, and efficient production of complex tools. These machines enhance accuracy, reduce labor dependency, lower production costs, and seamlessly integrate into modern, data-driven manufacturing workflows across sectors such as automotive, aerospace, electronics, and medical devices. For manufacturers seeking to maintain a competitive edge, adopting advanced CNC step grinding technology is essential.
To explore reliable, high-performance solutions, Nazai (Zhejiang) Intelligent Technology Co., Ltd. offers a comprehensive range of CNC step grinding machines designed to meet diverse industrial needs. Their advanced systems combine multi-axis control, intelligent software, and durable mechanical design to deliver consistent, precise, and efficient grinding. Manufacturers can find the right solutions to improve productivity and maintain tool quality. Visit Nazai (Zhejiang) Intelligent Technology Co., Ltd. to learn more, browse product specifications, and connect with their expert team for professional guidance tailored to your manufacturing requirements.
1. How do CNC step grinding machines revolutionize manufacturing?
By delivering high-precision, automated, and repeatable grinding of complex tools, improving efficiency and quality.
2. Which industries benefit most from these machines?
Automotive, aerospace, electronics (3C), medical devices, and precision tooling sectors.
3. Can CNC step grinding machines handle intricate tool geometries?
Yes, multi-axis CNC systems allow precise grinding of steps, tapers, and curved surfaces with micron-level tolerances.
4. What are the advantages over traditional grinding methods?
Higher accuracy, reduced cycle times, minimized human error, lower costs, and integration into smart factory workflows.
5. How should these machines be maintained?
Routine cleaning, spindle checks, software updates, wheel dressing, and proper coolant management are recommended.
6. How do manufacturers choose the right CNC step grinding machine?
Evaluate production requirements, tool complexity, machine specifications, and select a trusted manufacturer with reliable support.
