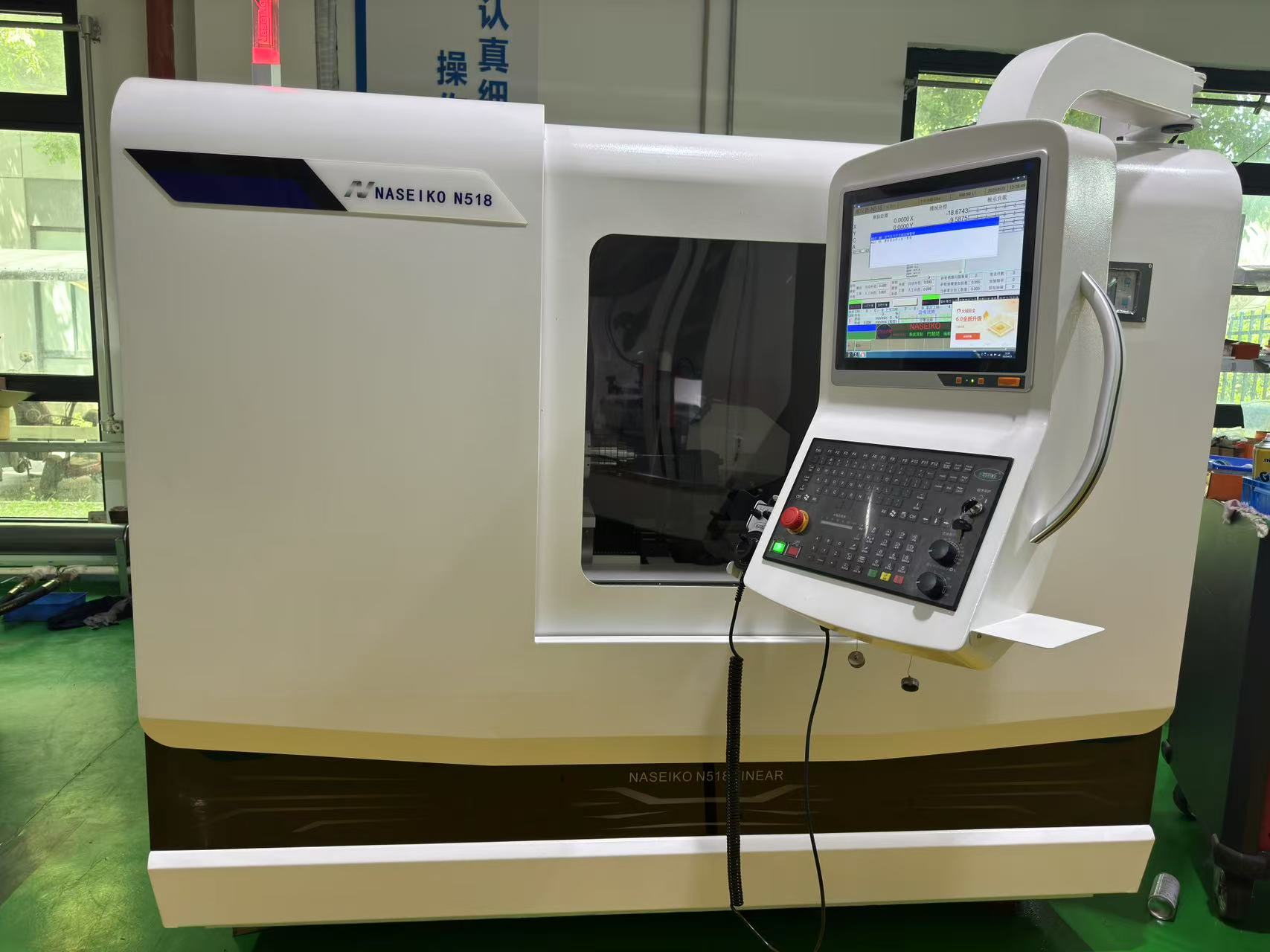

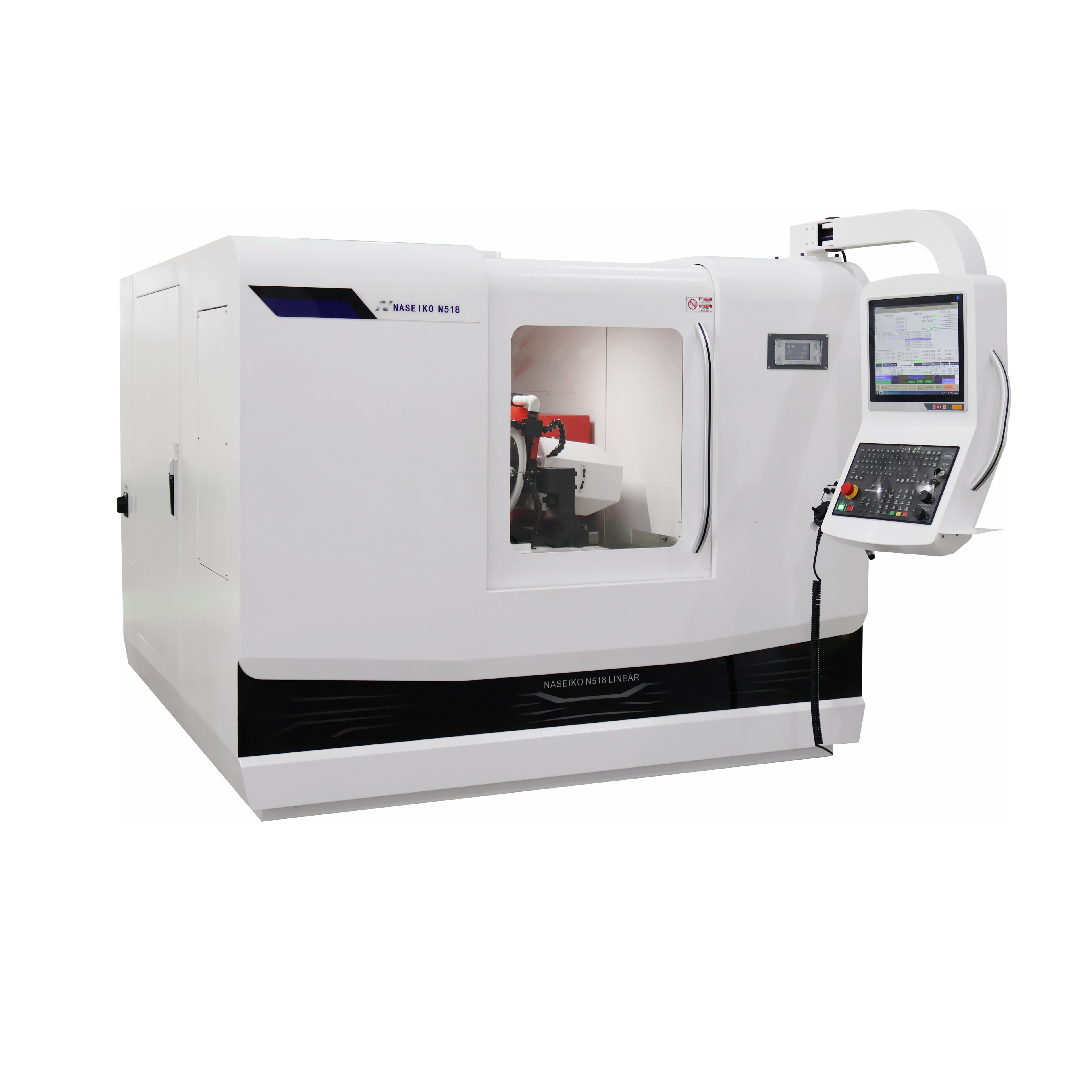

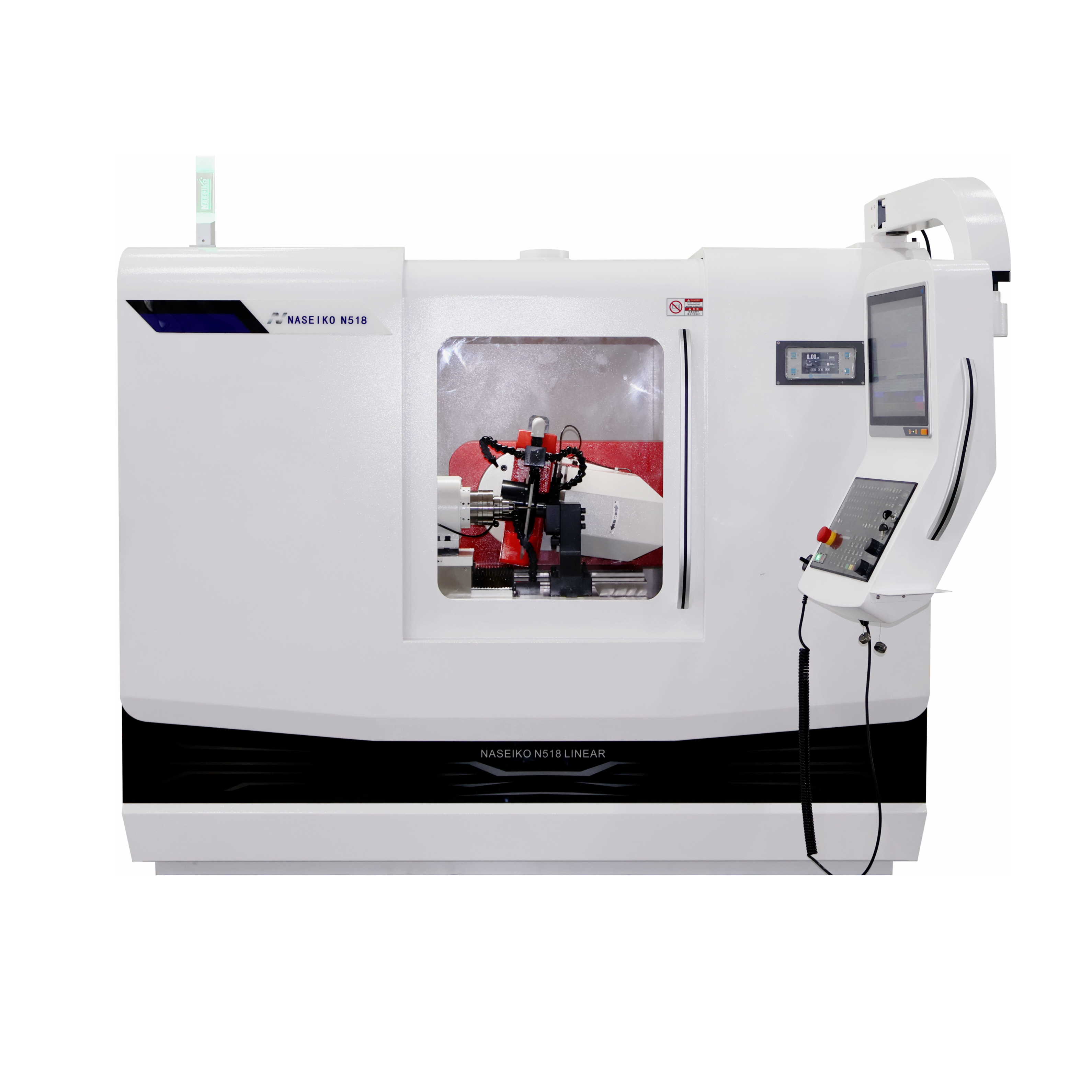

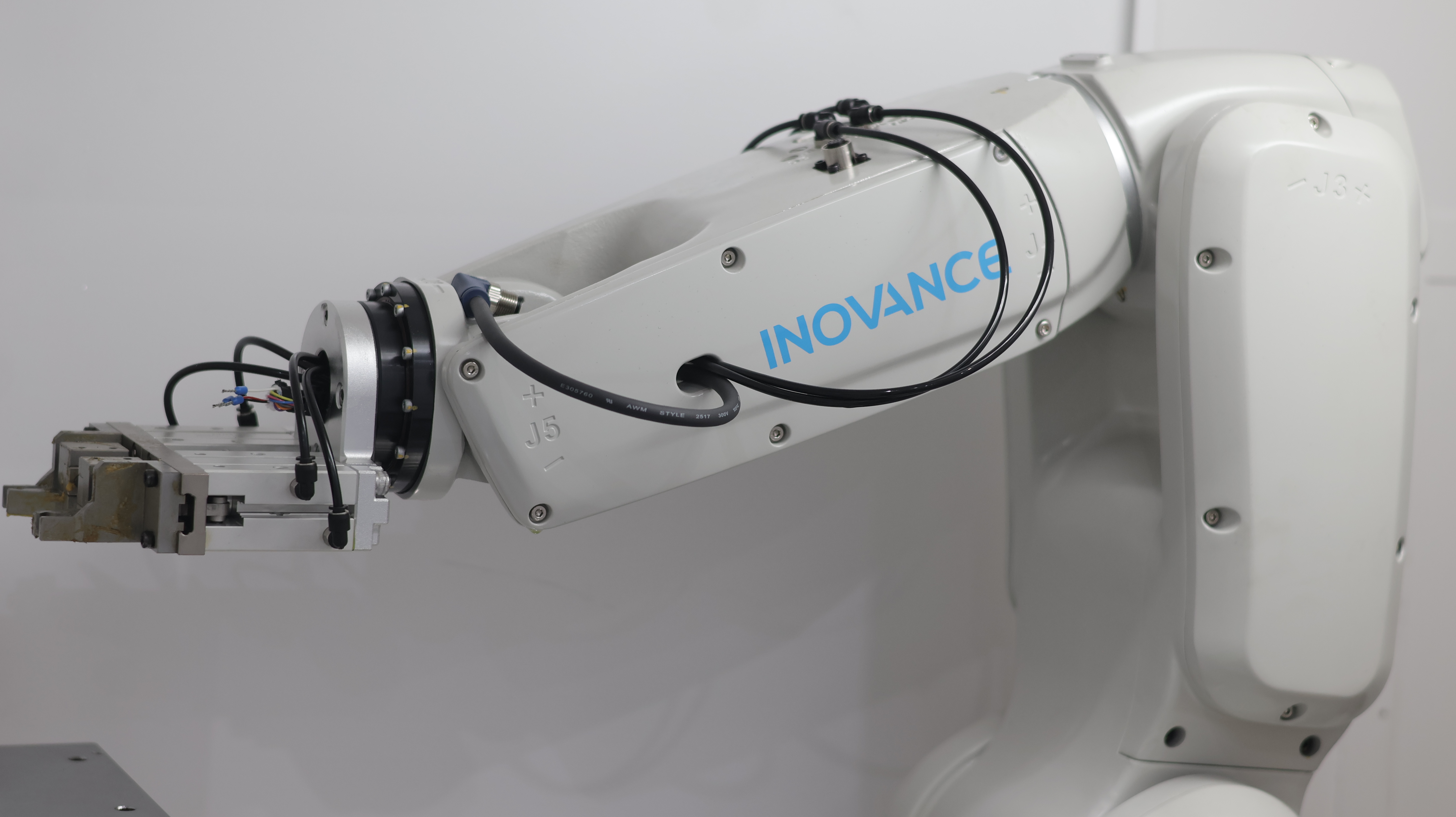

NZ-518 Precision CNC Tap/Thread Grinder, 4-Axis 3-Linkage Control

The 4-axis 3-link CNC tap grinding machine produced by our company is designed according to the experience of German CNC thread grinding machine designers and operators, and through communication on the tap production site. It reflects practicality, economy, operation, maintenance, stability and efficiency.
The machine tool adopts an integral imported organic glass round door, which facilitates the unlimited operation and maintenance of the machine tool. The fully enclosed protective cover shell is in line with production safety. In order to cope with the production of special tools, the relative position relationship of the servo shaft of the equipment can be optimized, and the structure can correspond to the processing of a variety of tools.
The X and Y axes:imported linear motors and screw rail,

A axis: DD direct drive, which has high precision and resolution to ensure the high production efficiency and product quality of the tap.

Quantity:
Availability:





Inquire Add to Basket

Model:
NZ-518
Brand:
NASEIKO

Paint type	White + gray black orange pattern
X axis	Digital control 3-axis linkage linear shaft, Taiwan HIWIN (Shang Yin) linear motor, power 4 KW, rated torque TR= 1139 NM (9.3 A), the highest TM= 5250 NM (57.5 A), travel: 580mm; CNC system resolution The rate is 0.001mm, the minimum resolution of programming and handwheel feed is 0.001mm, and the guide rail SRG35-P is repeated Position accuracy: 0.003mm
Yaxis	Digital control 3-axis linkage linear shaft, Taiwan HIWIN (Shang Yin) linear motor, power 4 KW, rated torque TR=113 9 NM (9.3A), the highest TM= 5250 NM (57.5 A) travel: 310mm; CNC system The resolution is 0.001mm, and the minimum resolution of programming and handwheel feed is 0.001mm. The guide rail is SRG 35-P Repeat positioning accuracy: 0.003mm

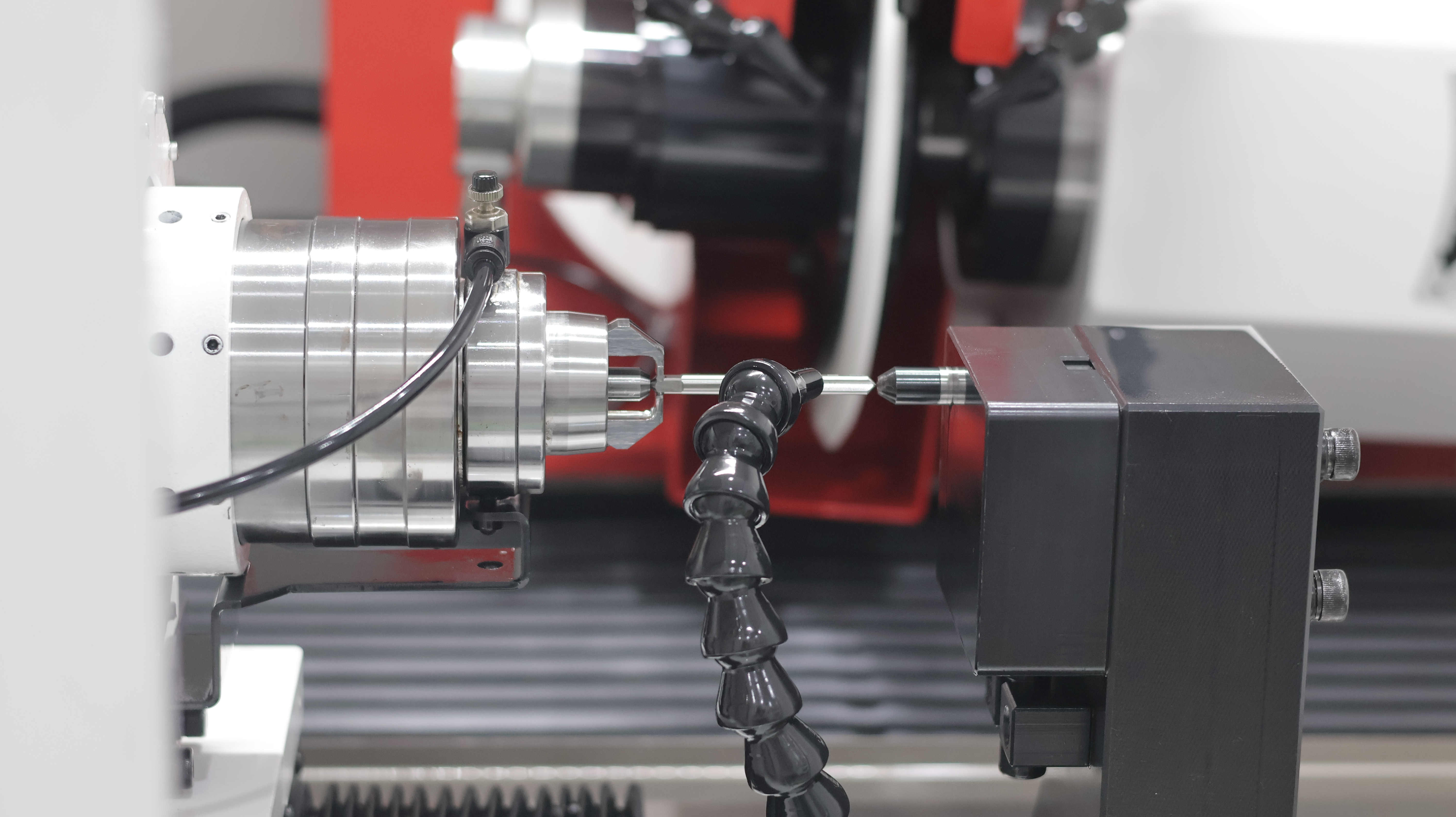

A axis	The CNC 3-axis linkage workpiece rotates the shaft, and the DD servo drives directly with a rated power of 0.879KW TR=28Nm(7.5A) Maximum TM=56Nm(16.5A) Dividing accuracy: 2 arc seconds (0.0005 degrees), rated speed: 300rpm, maximum speed: 400rpm, CNC system resolution: 0.001 degrees, minimum programming and handwheel feed resolution: 0.001 degrees, infinite rotation, dividing head body: radial runout: 0.001-0.005mm, end face runout: 0.001-0.005mm
quick travel X. Y.Z	X/Y axis 35 m/min
Hold the minimum workpiece diameter	3mm
Hold the maximum workpiece diameter	20mm
Hold the maximum workpiece length	2 3 0mm
The main grinding is the minimum diameter of the workpiece	1mm
Maximum workpiece diameter for main grinding	20mm
Maximum length of the main grinding edge	Greater than 1 5 0mm
Maximum workpiece weight for main grinding	5kg
Linear resolution	0.001mm
Linear repeat positioning accuracy	0.003mm
Resolution of rotation	0.001mm
Rotation and repeat positioning accuracy	0.001 degrees
Main shaft 1 power	Standard 15kw (optional: 20KW permanent magnet variable frequency motor constant torque)
Boring bar form	Automatic balance is available
Diameter of the grinding wheel	300～ 3 50mm
Saw wheel spindle speed	4000~8000rpm continuously adjustable: driver
Machine weight	About 5000kg
Aggregate capacity	≤27.5kw
