Diamond vs CBN Grinding Wheels: Which Is Better for Carbide and HSS Tools?

Choosing the right grinding wheel is one of the most important decisions in tool manufacturing and tool regrinding. For many workshops, the question often starts with one simple comparison: diamond vs CBN grinding wheels. Both diamond and CBN are superabrasive materials. Both can deliver long wheel life, high accuracy, strong profile retention, and excellent surface finish when used correctly. However, they are not interchangeable.

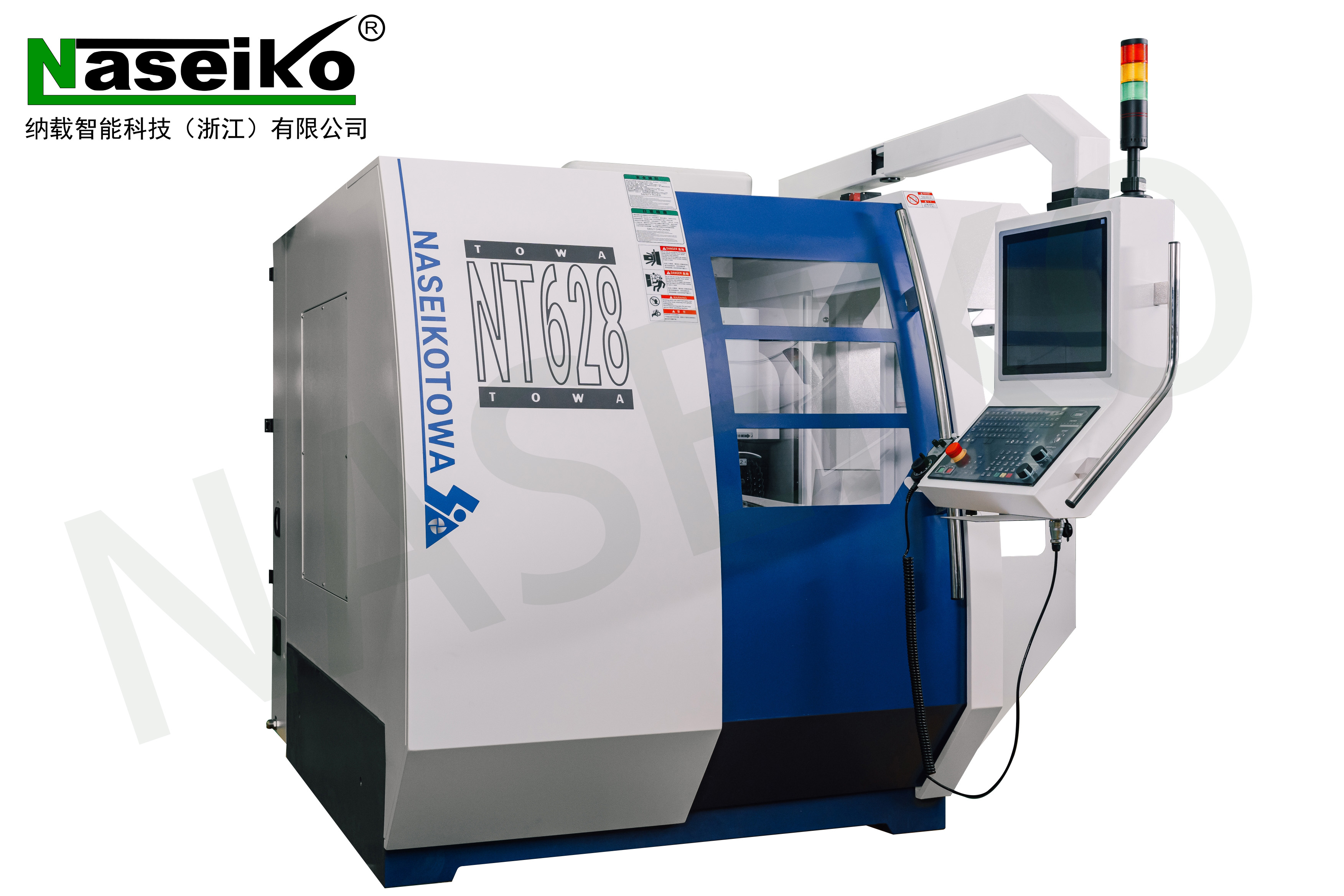

For a workshop using a CNC Tool Grinding Machine, the choice between diamond and CBN directly affects grinding efficiency, tool edge quality, wheel life, heat control, and final cutting performance. If the wrong abrasive is used, the grinding wheel may wear too fast, create poor surface finish, generate heat, damage the cutting edge, or fail to hold the required tool geometry.

The most practical rule is simple: diamond grinding wheels are normally better for carbide tools and other hard non-ferrous materials, while CBN grinding wheels are normally better for HSS tools, hardened steels, and other ferrous tool materials. But in real production, the decision is not based on material alone. Tool geometry, grinding operation, bond type, coolant, machine rigidity, spindle speed, stock removal, surface finish, and production volume also matter.

This guide explains diamond vs CBN grinding wheels from the viewpoint of tool grinding. It focuses on carbide and HSS tools, but it also helps buyers understand how wheel selection should match a CNC Tool Grinding Machine, tool material, and production target.

What Are Diamond and CBN Grinding Wheels?

Diamond grinding wheels use synthetic diamond abrasive grains. Diamond is extremely hard and has strong wear resistance when grinding hard non-ferrous materials. In tool grinding, diamond wheels are widely used for carbide cutting tools, PCD tools, ceramics, glass, and other hard brittle materials. For carbide end mills, carbide drills, micro tools, and rotary burrs, diamond is usually the first choice.

CBN grinding wheels use cubic boron nitride abrasive grains. CBN is also a superabrasive, but its major advantage is chemical stability with ferrous materials. This makes CBN suitable for HSS tools, hardened steels, bearing steel, tool steel, die steel, and many cast iron applications. When a CNC Tool Grinding Machine is used to grind HSS drills, taps, reamers, or steel forming tools, CBN is often the better choice.

The reason is chemistry. Diamond is carbon-based. At high grinding temperatures, diamond can react with iron in steel. This reaction can accelerate wheel wear and reduce grinding performance. CBN does not have the same problem with iron-based materials, so it performs better in many steel grinding applications.

In short:

For a CNC Tool Grinding Machine, this table should be treated as the starting point, not the final answer. Wheel bond, grit size, concentration, wheel shape, coolant, and grinding parameters must still be matched to the operation.

Why the Material Being Ground Comes First

When comparing diamond vs CBN grinding wheels, the first question should always be: what material will the wheel grind?

In tool grinding, carbide and HSS behave very differently. Carbide is hard, brittle, and non-ferrous. It requires a wheel that can cut very hard material while maintaining edge quality. Diamond works well in this situation because it is extremely hard and can create a sharp cutting action on carbide.

HSS is different. High-speed steel contains iron and alloying elements. During grinding, heat is generated at the wheel-workpiece contact zone. Diamond may wear rapidly when grinding ferrous tool steels because of chemical reaction at elevated temperature. CBN is more stable for this type of material, which is why it is commonly used for HSS tool grinding.

This material-first logic is important because many buyers focus too much on wheel hardness alone. They assume that because diamond is harder than CBN, diamond must be better for every tool. That is not correct. In a CNC Tool Grinding Machine, the best wheel is not simply the hardest wheel. The best wheel is the wheel that matches the tool material, grinding heat, chip formation, and finish requirement.

Diamond Wheels for Carbide Tools

Diamond wheels are the standard choice for grinding carbide tools. Carbide is very hard and abrasive, so conventional wheels often wear quickly or fail to produce stable results. A diamond wheel can cut carbide efficiently and maintain a sharp grinding action when properly selected.

In a CNC Tool Grinding Machine, diamond wheels are used for many carbide tool operations, including flute grinding, clearance grinding, end face grinding, gashing, chamfering, step grinding, and form grinding. The wheel must not only remove material; it must also maintain the tool geometry accurately.

Diamond wheels are especially useful for:

• Carbide end mills

• Carbide drills

• Carbide reamers

• Carbide rotary burrs

• Carbide forming tools

• Micro carbide tools

• Carbide tools used in 3C, mold, aerospace, medical, and automotive machining

The main advantages of diamond wheels for carbide tool grinding include:

However, diamond wheels also require correct use. If coolant is poor, the feed rate is too aggressive, the wheel bond is wrong, or the wheel becomes loaded, grinding quality will suffer. A diamond wheel is not a shortcut around process control. It performs best when the CNC Tool Grinding Machine is stable, the coolant reaches the grinding zone, and the wheel is dressed correctly.

CBN Wheels for HSS Tools

CBN wheels are usually better for HSS tools and hardened steel tools. In the diamond vs CBN grinding wheels comparison, CBN wins whenever the material is ferrous and hard enough to justify superabrasive grinding.

HSS tools are widely used for drills, taps, reamers, cutters, and special tools. These tools require good edge geometry, controlled heat, and stable grinding performance. CBN wheels can maintain cutting ability on HSS because CBN does not react with iron in the same way diamond can.

A CNC Tool Grinding Machine equipped with suitable CBN wheels can be used for HSS tool manufacturing and regrinding. This is especially helpful for tool rooms that process different tool materials. For example, one production area may use diamond wheels for carbide tools and CBN wheels for HSS tools on the same CNC Tool Grinding Machine platform, depending on machine configuration and wheel setup.

CBN wheels are especially suitable for:

• HSS drills

• HSS taps

• HSS reamers

• Hardened steel tools

• Tool steel cutters

• Ferrous forming tools

• Certain cast iron grinding applications

CBN wheels offer several advantages for HSS tool grinding:

For a CNC Tool Grinding Machine, CBN wheel selection should consider HSS hardness, tool geometry, stock removal, finish requirement, and coolant. CBN is not automatically the best choice for every steel part. For softer steels or low-volume work, conventional abrasives may still be economical. But for precision HSS tool grinding, CBN is often the more stable and cost-effective option over time.

Diamond vs CBN Grinding Wheels: Quick Comparison Table

The following table provides a practical comparison for tool grinding buyers.

This comparison makes one point clear: diamond vs CBN grinding wheels is not a question of which abrasive is universally better. It is a question of which abrasive is better for the material and grinding process.

How Bond Type Changes the Result

Abrasive type is only one part of wheel selection. Bond type also has a major influence on grinding performance. Even if a workshop chooses the correct abrasive, the wrong bond can still create poor results.

Common bond types include resin bond, vitrified bond, metal bond, hybrid bond, and electroplated bond. Each bond behaves differently in a CNC Tool Grinding Machine.

For carbide tools, resin bond diamond wheels are common because they can provide a good balance of cutting ability and finish. Vitrified diamond wheels may be selected when profile retention and free cutting are important. For HSS tools, vitrified CBN wheels are often used when stable cutting, form holding, and productivity are required.

A CNC Tool Grinding Machine can only deliver repeatable results when the wheel specification is correct. This means buyers should not ask only, “Should I choose diamond or CBN?” They should ask, “Which abrasive, bond, grit, concentration, wheel shape, and dressing method match my tool grinding process?”

Grit Size and Surface Finish

Grit size affects stock removal, tool finish, edge sharpness, and grinding heat. Coarser grit removes material faster but may leave a rougher surface. Finer grit improves finish but may load more easily or remove material more slowly.

In a CNC Tool Grinding Machine, different grinding operations may require different grit sizes. Roughing and finishing should not always use the same wheel. For example, flute grinding may require efficient stock removal, while final edge finishing may require a finer wheel.

General guidance:

For diamond vs CBN grinding wheels, grit size should be selected after the abrasive type is chosen. A diamond wheel for carbide finishing may need a different grit from a diamond wheel for carbide roughing. A CBN wheel for HSS regrinding may need a different grit from a CBN wheel for high-volume steel tool production.

Coolant and Heat Control

Coolant is critical in both diamond and CBN grinding. Even though superabrasive wheels have high performance, heat still needs to be controlled. Poor coolant delivery can cause wheel loading, tool burning, unstable finish, and reduced wheel life.

In a CNC Tool Grinding Machine, coolant must reach the grinding zone effectively. It is not enough for coolant to simply splash near the wheel. The nozzle direction, pressure, flow rate, filtration, and coolant concentration all affect results.

For carbide tool grinding with diamond wheels, coolant helps remove carbide swarf and reduce edge damage. For HSS tool grinding with CBN wheels, coolant helps control thermal damage and maintain stable cutting. In both cases, coolant supports wheel life and tool quality.

Common coolant-related problems include:

• Nozzle aimed away from the grinding zone

• Insufficient flow rate

• Poor filtration

• Incorrect coolant concentration

• Foam or contamination

• Coolant blocked by tool geometry or wheel guard

• Poor cleaning of wheel surface

When buyers evaluate a CNC Tool Grinding Machine, coolant design should be part of the decision. A rigid machine with poor coolant delivery may still produce unstable grinding results. The wheel, machine, coolant, and dressing process must work together.

Dressing Requirements for Diamond and CBN Wheels

Diamond and CBN wheels need proper dressing and truing. Dressing opens the wheel surface and exposes sharp abrasive grains. Truing restores wheel geometry and helps the wheel run accurately. Both steps are important in tool grinding.

A diamond wheel used for carbide tools may become loaded with carbide swarf. If the wheel face becomes blocked, it may stop cutting freely and begin rubbing. This causes heat, poor finish, and edge damage. Dressing restores the wheel surface and cutting ability.

A CBN wheel used for HSS tools may need truing to maintain concentricity and profile accuracy. Vitrified CBN wheels can hold form well, but they still need controlled preparation and maintenance.

For a CNC Tool Grinding Machine, dressing strategy should be linked to tool quality signals. Operators should not wait until severe defects appear. Instead, they should monitor spindle load, tool finish, edge condition, grinding sound, dimensional drift, and wheel appearance.

A CNC Tool Grinding Machine performs best when wheel conditioning is standardized. Process records help operators know when and how to dress the wheel for each tool family.

How Wheel Choice Affects Tool Edge Quality

Tool edge quality is one of the main reasons to compare diamond vs CBN grinding wheels carefully. The cutting edge is where tool performance begins. If the edge is burned, chipped, rough, or geometrically inconsistent, the tool may fail early in machining.

For carbide tools, diamond wheels can produce sharp and clean edges when the wheel is properly specified. This is important for high-speed cutting, mold machining, 3C components, medical parts, and precision parts. Carbide tools often require stable edge geometry, controlled micro-chipping, and fine surface finish.

For HSS tools, CBN wheels can help maintain edge quality while reducing thermal damage. HSS tools are more heat-sensitive than carbide in many grinding conditions, so wheel selection and coolant control are important. A CBN wheel can support stable grinding on HSS when used correctly.

A CNC Tool Grinding Machine contributes to edge quality by controlling axis movement, wheel path, feed rate, and repeatability. However, the wheel still performs the actual cutting. That is why wheel selection and CNC machine capability should be evaluated together.

Cost Comparison: Initial Price vs Cost per Tool

Many buyers compare diamond and CBN wheels by initial purchase price. This is understandable, but it is not the best way to evaluate wheel value. The better metric is cost per finished tool.

Cost per tool includes:

• Wheel purchase price

• Wheel life

• Dressing frequency

• Cycle time

• Tool rejection rate

• Machine downtime

• Surface finish consistency

• Operator adjustment time

• Rework and inspection cost

A more expensive wheel can be cheaper in the long run if it reduces scrap, improves wheel life, and shortens cycle time. A lower-cost wheel can become expensive if it causes unstable grinding results.

For a CNC Tool Grinding Machine, wheel value should be measured through production performance. A wheel that works well in manual grinding may not be the best wheel for automated tool grinding. A wheel that performs well for one tool type may not work for another.

Example cost comparison framework:

The key point is that the lowest wheel price does not always produce the lowest grinding cost. The right wheel matched with the right CNC Tool Grinding Machine process produces better long-term value.

Selecting Wheels for Carbide Tools on a CNC Tool Grinding Machine

When selecting a wheel for carbide tools, diamond should usually be the first option. However, the exact wheel specification depends on the tool type and grinding operation.

For carbide end mills, the wheel must support flute shape, clearance angle, cutting edge quality, and final finish. For carbide drills, point geometry and edge consistency are important. For rotary burrs and forming tools, profile accuracy and wheel shape retention may be more important.

A practical selection process:

1. Identify the carbide grade and tool type.

2. Define the grinding operation: roughing, flute, clearance, end face, or finishing.

3. Choose diamond as the abrasive.

4. Select bond type based on finish, stock removal, and profile retention.

5. Select grit size based on finish and material removal.

6. Confirm wheel shape and dimensions.

7. Check CNC Tool Grinding Machine spindle speed and coolant capacity.

8. Test and record grinding parameters.

9. Monitor edge quality, wheel wear, and dimensional stability.

If the tool has micro features or small diameters, wheel sharpness and profile accuracy become even more important. In this case, the CNC Tool Grinding Machine must provide stable motion, low vibration, and repeatable grinding paths.

Selecting Wheels for HSS Tools on a CNC Tool Grinding Machine

For HSS tools, CBN is usually the better abrasive. HSS contains iron, and CBN offers better chemical stability for this type of grinding. A CBN wheel can support accurate regrinding and tool manufacturing when selected correctly.

HSS tools may include drills, taps, reamers, step tools, and special cutters. Each tool type has different geometry and grinding contact conditions. A CNC Tool Grinding Machine should be configured with the correct CBN wheel, wheel pack, coolant, and dressing method.

A practical selection process:

1. Identify HSS grade and hardness.

2. Define tool type and grinding operation.

3. Choose CBN as the abrasive.

4. Select bond type according to required profile stability and finish.

5. Select grit size based on stock removal and surface finish.

6. Confirm wheel geometry and mounting.

7. Check CNC Tool Grinding Machine speed and coolant settings.

8. True and dress the wheel properly.

9. Monitor tool burn, surface finish, and dimensional accuracy.

If HSS tools show burn marks or poor finish, the problem may not be only the wheel type. It may also come from coolant, dressing, speed, feed, or machine rigidity.

Latest Trends in Tool Grinding Wheel Selection

The discussion of diamond vs CBN grinding wheels is becoming more important because tool grinding is changing. Manufacturers are facing higher accuracy requirements, smaller tools, more tool materials, and stronger pressure to reduce cost per tool.

More in-house tool regrinding

Many factories are bringing tool regrinding inside their own production systems. This helps reduce tooling cost and improve tool availability, but it also requires better control of the CNC Tool Grinding Machine process. Wheel selection becomes more important because one machine may handle multiple tool materials.

More carbide tools in precision manufacturing

Carbide tools are widely used in 3C electronics, mold making, aerospace, medical, automotive, and high-speed machining. This increases demand for diamond wheels and stable carbide grinding processes. A CNC Tool Grinding Machine used for carbide tools must maintain accuracy and repeatability over long runs.

Continued demand for HSS tools

Although carbide tools are common, HSS tools are still widely used in many industries because they are tough, cost-effective, and suitable for many cutting applications. CBN wheels remain important for HSS tool grinding and regrinding.

More complex tool geometries

Modern tools often include variable helix designs, special edge preparation, step forms, and custom profiles. These tools require wheels that hold shape well. The CNC Tool Grinding Machine must work with the correct wheel specification to maintain tool geometry.

More focus on process data

Workshops are paying more attention to spindle load, cycle time, wheel wear, dressing interval, coolant condition, and rejection rate. These data points help determine whether diamond or CBN is producing better cost per tool in a real production environment.

Decision Guide: Which Wheel Should You Choose?

The following decision guide can help buyers choose between diamond and CBN.

For a CNC Tool Grinding Machine user, this guide should be combined with real process testing. The final wheel specification should be validated through tool finish, edge quality, dimensional accuracy, cycle time, and wheel life.

Common Mistakes When Comparing Diamond vs CBN Grinding Wheels

Many grinding problems happen because the selection process is too simple. Buyers may choose a wheel based on price, hardness, or general recommendation without considering the actual process.

Common mistakes include:

• Choosing diamond for HSS because diamond is harder

• Choosing CBN for carbide because it is also a superabrasive

• Ignoring bond type

• Using the same wheel for roughing and finishing

• Ignoring coolant delivery

• Failing to dress and true the wheel correctly

• Copying parameters from another CNC Tool Grinding Machine without testing

• Evaluating wheel cost only by purchase price

• Ignoring tool rejection rate and cycle time

• Not recording successful wheel specifications

A CNC Tool Grinding Machine can provide high repeatability, but it cannot correct the wrong abrasive choice. If the wheel is mismatched to the tool material, the machine will simply repeat an unstable process.

Conclusion

Diamond vs CBN grinding wheels is not a competition with one universal winner. The better wheel depends mainly on the tool material. For carbide tools, diamond grinding wheels are normally the better choice because they offer excellent hardness, cutting ability, edge finish, and profile retention on hard non-ferrous materials. For HSS tools and hardened steel tools, CBN grinding wheels are normally better because they are chemically stable with iron-based materials and can maintain performance under demanding grinding conditions.

For manufacturers using a CNC Tool Grinding Machine, the correct wheel choice directly affects tool quality, wheel life, cycle time, coolant performance, dressing frequency, and cost per finished tool. The machine, wheel, coolant, dressing method, and grinding parameters must be treated as one system.

If your workshop mainly processes carbide end mills, carbide drills, rotary burrs, or carbide forming tools, diamond wheels should be your primary choice. If your workshop mainly processes HSS drills, taps, reamers, hardened steel tools, or ferrous tool materials, CBN wheels should usually be your first choice. If your production includes both carbide and HSS tools, your CNC Tool Grinding Machine workflow should include separate wheel specifications and process records for each material group.

The best decision is not simply diamond or CBN. The best decision is a complete grinding solution: the right abrasive, the right bond, the right grit, the right coolant, the right dressing process, and the right CNC Tool Grinding Machine for your tool manufacturing and regrinding needs.

FAQs About Diamond vs CBN Grinding Wheels for Tool Grinding

1. Can I use one grinding wheel for both carbide and HSS tools?

It is not recommended. Carbide and HSS have different material properties. Diamond is usually better for carbide, while CBN is usually better for HSS. Using one wheel for both materials may reduce wheel life and tool quality.

2. Why does diamond wear quickly when grinding steel tools?

Diamond is carbon-based and can react with iron at high grinding temperatures. This can cause rapid abrasive breakdown when grinding steel or HSS tools. CBN is more stable for iron-based materials.

3. Is CBN always better than conventional abrasives for HSS tool grinding?

Not always. CBN is usually valuable for hard HSS tools, high-volume production, precision grinding, and applications where wheel life and consistency matter. For low-volume or softer steel work, conventional abrasives may still be economical.

4. What information should I provide before choosing a wheel for a CNC Tool Grinding Machine?

You should provide tool material, hardness, tool type, grinding operation, wheel dimensions, machine model, spindle speed, coolant type, required surface finish, tolerance, and current grinding problems if replacing an existing wheel.

5. How do I know if my wheel choice is correct after testing?

A correct wheel choice should produce stable tool geometry, acceptable surface finish, controlled edge quality, reasonable cycle time, manageable dressing frequency, and consistent wheel life. If burn, chatter, rapid wear, poor finish, or dimensional drift appears, the wheel specification or grinding parameters may need adjustment.
