Choosing the right grinding wheel grit size is one of the most important decisions in carbide tool grinding. For tool manufacturers, tool regrinding centers, precision machining workshops, and factories that process carbide cutting tools in-house, grit size directly affects material removal rate, cutting edge quality, surface finish, grinding heat, wheel life, and production cost.

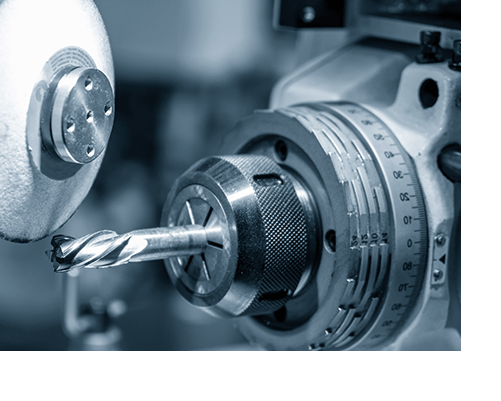

When carbide end mills, drills, reamers, rotary burrs, forming tools, or special cutting tools are ground on a CNC Tool Grinding Machine, the grinding wheel is not just a consumable. It becomes a key part of the machining system. The machine controls tool paths, axis movement, spindle speed, and repeatable positioning, but the wheel performs the actual cutting. If the grinding wheel grit size is too coarse, the carbide tool may be ground quickly but show rough flute marks, poor finish, or micro-chipping. If the grinding wheel grit size is too fine, the tool surface may become smoother, but the process may suffer from heat, wheel loading, longer cycle time, or frequent dressing.
This article provides a practical grinding wheel grit size chart for carbide tool grinding. It explains how grit size affects carbide tools, how to choose grit size by grinding operation, how to match grit size with diamond wheels and bond types, and how a CNC Tool Grinding Machine helps manufacturers achieve stable, repeatable tool quality.
For buyers evaluating a CNC Tool Grinder or a full line of CNC Grinding Machines, this guide also explains why wheel selection should be considered together with machine rigidity, coolant delivery, dressing method, tool type, and production goals.
Grinding wheel grit size refers to the size of abrasive grains in a grinding wheel. These abrasive grains work like many small cutting edges. A lower grit number usually means larger abrasive grains, while a higher grit number usually means smaller abrasive grains.
In simple terms:
Grit Type | Grain Character | Main Grinding Purpose |
|---|---|---|
Coarse grit | Larger abrasive grains | Fast stock removal and rough grinding |
Medium grit | Balanced abrasive size | General grinding and semi-finishing |
Fine grit | Smaller abrasive grains | Precision grinding and smoother finish |
Very fine grit | Very small abrasive grains | Micro tools, final finishing, delicate edges |
For carbide tool grinding, grinding wheel grit size is especially important because carbide is hard, wear-resistant, and relatively brittle. The wheel must remove material efficiently while protecting the cutting edge from chipping, overheating, or surface damage.
On a CNC Tool Grinding Machine, grit size should never be selected alone. It must be considered together with abrasive type, bond type, wheel shape, wheel concentration, coolant delivery, spindle speed, feed rate, dressing condition, and tool geometry.
A CNC Tool Grinding Machine can repeat a grinding process accurately, but it cannot make a poorly selected wheel perform correctly. If the wrong grit size is selected, the machine may simply repeat the same surface defect, edge damage, or wheel loading problem.
Carbide cutting tools are widely used in 3C electronics, mold making, automotive, aerospace, medical, precision parts machining, and high-speed milling. These tools must maintain accurate geometry and strong edge quality because their performance directly affects machining efficiency and workpiece quality.
In carbide tool grinding, grinding wheel grit size affects several key results:
Grinding Result | How Grit Size Affects It |
Material removal rate | Coarse grit removes carbide faster |
Surface finish | Fine grit creates smoother surfaces |
Edge quality | Fine grit usually improves edge control |
Grinding heat | Wrong grit size can cause rubbing and heat buildup |
Wheel loading | Fine grit may load faster if coolant or dressing is poor |
Tool geometry | Stable grit behavior helps maintain repeatable tool form |
Wheel life | Correct grit reduces unnecessary wheel wear |
Cycle time | Coarse or medium grit can reduce rough grinding time |
For a CNC Tool Grinding Machine, these factors are closely connected. If the tool requires a fine surface finish but the wheel is too coarse, the finished carbide tool may not meet quality expectations. If the operation requires fast stock removal but the wheel is too fine, the machine may need longer cycle time and generate more heat.
That is why the best grinding wheel grit size is not always the finest grit. The best grit size is the one that matches the tool material, tool size, grinding operation, and final quality requirement.
The following grinding wheel grit size chart provides a practical starting point for carbide tool grinding. Actual selection should be verified through test grinding on the real CNC Tool Grinding Machine, using the actual carbide grade, wheel bond, coolant system, tool geometry, and surface finish requirement.
Grit Size Range | Grit Category | Typical Carbide Tool Grinding Use | Main Benefit | Possible Limitation |
80–120 | Coarse to medium | Rough grinding, carbide blank preparation, heavy stock removal | Fast material removal | Rougher finish and higher risk of edge chipping |
150–240 | Medium | General flute grinding, clearance grinding, semi-finishing | Balanced cutting efficiency and surface finish | May not be fine enough for high-precision finishing |
320–400 | Fine | Finishing carbide end mills, drills, reamers, forming tools | Better finish and improved edge control | Lower stock removal rate |
600–800 | Very fine | Micro carbide tools, small drills, high-finish operations | Fine surface quality and reduced visible grinding marks | More sensitive to loading, heat, and dressing condition |
1000+ | Ultra-fine | Special finishing, polishing-like grinding, ultra-precision tool edges | Excellent finish for delicate tool features | Slow grinding and strict process control required |
This chart should be treated as a process guide, not a fixed rule. A CNC Tool Grinding Machine used for high-volume carbide end mill production may require a different grit strategy from a CNC Tool Grinder used for small-batch regrinding of mixed tools. A workshop producing carbide tools for 3C applications may also need different finishing requirements from a workshop grinding larger tools for mold machining.
A common question in carbide tool grinding is whether coarse grit or fine grit is better. The answer depends on the grinding stage. Coarse grit is better for fast material removal, while fine grit is better for final surface quality and cutting edge control.
Selection Factor | Coarse Grit Wheel | Fine Grit Wheel |
Material removal rate | High | Low to medium |
Surface finish | Rougher | Smoother |
Cutting edge quality | Higher risk of micro-chipping | Better final edge control |
Cycle time | Shorter for roughing | Longer for heavy stock removal |
Wheel loading | Usually better chip clearance | Can load more easily if coolant is poor |
Heat control | Good if chips clear well, risky if feed is too aggressive | Good for finishing, risky if the wheel rubs |
Best application | Roughing and pre-shaping | Finishing and precision grinding |
A CNC Tool Grinding Machine makes it easier to use a staged grinding process. Instead of using one wheel to do everything, the operator can rough the carbide tool with a coarser or medium grit wheel, then finish the edge and surface with a finer grit wheel.
This approach improves both productivity and quality. It avoids the slow cycle time of using fine grit for all material removal, and it avoids the edge damage that may occur when coarse grit is used too close to final geometry.
Different carbide tools require different grit size strategies. Tool diameter, flute geometry, edge strength, form accuracy, and final finish all affect wheel selection.
Carbide Tool Type | Main Grinding Requirement | Suggested Grit Direction | Practical Selection Note |
Carbide end mill | Flute shape, clearance angle, end face, edge finish | 150–400 | Use medium grit for flute grinding and finer grit for final edge finishing |
Carbide drill | Point geometry, margin finish, edge control | 240–600 | Small drills often need finer grit and stable coolant delivery |
Carbide reamer | Dimensional accuracy and smooth surface finish | 320–800 | Finish quality is usually more important than high stock removal |
Carbide rotary burr | Tooth profile and form repeatability | 150–400 | Balance material removal with profile control |
Micro carbide tool | Small edge radius and delicate geometry | 600–1000+ | Requires excellent machine rigidity, coolant, and dressing |
Carbide forming tool | Profile accuracy and repeatability | 240–600 | Wheel profile control may be as important as grit size |
A CNC Tool Grinding Machine for carbide tools should support different grinding operations, not just one tool type. NASEIKO’s product direction is closely related to this need because its CNC Tool Grinding Machine series is designed for cutting tool manufacturing and regrinding, including milling cutters, drills, forming tools, rotary burrs, and non-standard tools.
For a manufacturer choosing a CNC Tool Grinder, this means wheel strategy should be discussed together with tool range. If the factory mainly produces carbide end mills, the machine and wheels should support stable flute grinding and clearance grinding. If the factory focuses on small carbide drills or 3C tools, fine grit finishing, vibration control, and coolant accuracy become more important.
In many cases, the grinding operation is more important than the tool category. The same carbide end mill may require one grit size for flute grinding and another for final edge finishing.
Grinding Operation | Primary Goal | Recommended Grit Strategy | Risk if Grit Size Is Wrong |
Carbide blank preparation | Remove material quickly | Coarse to medium grit | Fine grit causes long cycle time and heat |
Rough grinding | Shape the tool before final geometry | Coarse to medium grit | Too coarse may leave deep marks |
Flute grinding | Create flute shape and chip space | Medium grit | Too coarse may reduce flute surface quality |
Clearance grinding | Create relief angle and edge support | Medium to fine grit | Too coarse may weaken the cutting edge |
End face grinding | Control end geometry and edge condition | Medium-fine to fine grit | Aggressive grit may cause edge chipping |
Form grinding | Maintain profile accuracy | Match grit to profile tolerance and finish | Wrong grit may affect profile stability |
Final finishing | Improve surface finish and edge quality | Fine to very fine grit | Too fine may load if coolant and dressing are poor |
A CNC Tool Grinding Machine can control these grinding stages through programmed tool paths and wheel sequences. This is one reason CNC Grinding Machines are preferred for modern cutting tool manufacturing: they make complex grinding operations repeatable.
However, repeatability only helps when the wheel specification is correct. If a wheel is too coarse for finishing or too fine for roughing, the CNC Tool Grinding Machine will repeat the wrong result consistently.
For carbide tool grinding, diamond grinding wheels are usually preferred because diamond performs well on hard non-ferrous materials such as tungsten carbide. The grinding wheel grit size of a diamond wheel should be selected according to the tool type and operation.
Diamond Wheel Application | Suggested Grit Direction | Expected Result |
Carbide rough grinding | 80–150 | Fast stock removal |
General carbide tool grinding | 150–240 | Balance of efficiency and finish |
Precision carbide grinding | 320–600 | Better surface finish and edge consistency |
Micro tool finishing | 600–1000+ | Fine finish and delicate edge control |
On a CNC Tool Grinding Machine, diamond wheel grit should also be matched with bond type. Resin bond diamond wheels are often used for general carbide tool grinding because they can provide a good balance of cutting ability and finish. Metal bond wheels may offer strong wear resistance. Vitrified and hybrid bond wheels may be selected when profile retention, coolant access, or high-performance grinding is required.
The key point is that grit size is only one part of the wheel specification. A fine grit diamond wheel with the wrong bond may still load quickly. A medium grit diamond wheel with the right bond and dressing condition may produce a better practical result than a fine grit wheel used incorrectly.
Surface finish is one of the most important reasons users search for a grinding wheel grit size chart. In carbide tool grinding, surface finish affects chip flow, coating preparation, cutting temperature, and tool life.
A finer grit usually produces a smoother surface because the abrasive grains create smaller grinding marks. This is why fine grit wheels are often used for finishing carbide tools, small drills, reamers, and micro tools.
However, finer grit does not automatically guarantee a better surface. If the wheel becomes loaded, dull, or glazed, it may rub instead of cut. This can create heat and poor finish even though the grit number is high.
A CNC Tool Grinding Machine helps control surface finish through stable axis movement, repeatable feed, and accurate grinding paths. But the wheel must remain sharp and open. If the wheel condition is poor, the machine cannot produce a stable finish.
For carbide tool grinding, surface finish should be evaluated together with:
Grinding wheel grit size
Diamond wheel bond type
Wheel dressing condition
Coolant flow and direction
Spindle speed
Feed rate
Tool contact area
Wheel wear
Tool inspection result
Cutting edge quality is critical for carbide tools. The edge must be sharp enough to cut efficiently but strong enough to resist chipping. Grinding wheel grit size affects edge radius, micro-chipping tendency, burr formation, and final tool performance.
Coarse grit can create a more aggressive cutting action. This is useful for material removal, but it can damage delicate carbide edges. Fine grit creates a more controlled cutting action, but it must be used with correct coolant, dressing, and feed rate to avoid rubbing.
For small carbide tools, fine grit is usually more important because the edge is delicate. For larger carbide tools, medium grit may be used for most shaping operations, followed by fine grit finishing when required.
A CNC Tool Grinding Machine is useful because it allows the edge-finishing step to be controlled separately. The tool can be rough-ground first and then finished with a more suitable grit size. This helps manufacturers balance production speed and tool quality.
Grinding heat is one of the main risks in carbide tool grinding. Excessive heat can damage the tool edge, reduce surface integrity, affect coating preparation, and shorten tool life.
Grit size affects grinding heat because it affects how the wheel cuts. A coarse wheel may create heat if the feed rate is too aggressive. A fine wheel may create heat if the wheel becomes loaded or rubs instead of cutting. Therefore, neither coarse nor fine grit is automatically safe. The correct grit is the one that cuts efficiently under the selected process conditions.
On a CNC Tool Grinding Machine, heat control depends on:
Heat Control Factor | Why It Matters |
Grit size | Determines cutting action and chip formation |
Wheel bond | Affects grain release and wheel openness |
Dressing condition | Keeps the wheel sharp and open |
Coolant flow | Removes heat and swarf from the grinding zone |
Feed rate | Controls grinding force |
Spindle speed | Affects surface speed and heat generation |
Tool contact area | Larger contact area may increase heat |
Machine rigidity | Reduces vibration and unstable cutting |
If burn marks, discoloration, or edge damage appear, the operator should not only change grit size. The full process should be checked.
Grinding wheel grit size cannot be separated from bond type. The bond holds abrasive grains in place and controls how grains are released during grinding. A suitable bond helps the wheel stay sharp, clear chips, and maintain shape.
Bond Type | Common Characteristic | Relation to Grit Size |
Resin bond | Good cutting ability and surface finish | Often used with medium to fine diamond grit for carbide tools |
Vitrified bond | Open structure and good profile stability | Useful when chip clearance and form holding are important |
Metal bond | Strong wear resistance | May require careful dressing to expose abrasive grains |
Hybrid bond | Balance of cutting ability and profile retention | Suitable for high-performance CNC tool grinding |
Electroplated bond | Strong abrasive exposure in a single layer | Useful for special profiles but limited redressing flexibility |
For carbide tool grinding, the same grit size may behave differently in different bonds. A 320 grit resin bond wheel may cut differently from a 320 grit metal bond wheel. This is why buyers should not ask only for “the best grit size.” They should communicate tool material, tool type, machine model, coolant, surface finish target, and current grinding problem.
A CNC Tool Grinding Machine performs best when grit, bond, wheel shape, and machine parameters are selected as a system.
The same grinding wheel grit size can produce different results on different machines. A rigid CNC Tool Grinding Machine with stable spindle control, accurate axis movement, good wheel balancing, and reliable coolant delivery can use fine grit wheels more effectively than an unstable machine.
When evaluating a CNC Tool Grinder, buyers should consider:
Machine rigidity
Axis accuracy
Spindle stability
Wheel pack support
Coolant delivery
Dressing method
Tool diameter range
Software capability
Regrinding flexibility
Production volume
Tool inspection workflow
NASEIKO’s CNC Grinding Machines are positioned for precision tool grinding applications, including carbide tool manufacturing and regrinding. For customers processing carbide end mills, drills, forming tools, and rotary burrs, the machine must support stable grinding paths and suitable wheel strategies.
If a workshop mainly grinds carbide tools for 3C applications, it may need fine finishing capability and strict edge control. If a workshop grinds larger carbide tools for mold or automotive applications, it may need stronger roughing efficiency and a balanced grit strategy.
A practical selection process should follow the real production workflow.
Step 1: Identify the carbide tool type.
A carbide end mill, drill, reamer, rotary burr, micro tool, and forming tool each require a different grit strategy.
Step 2: Define the grinding operation.
Roughing, flute grinding, clearance grinding, form grinding, end face grinding, and finishing all have different requirements.
Step 3: Decide the main priority.
The priority may be material removal, surface finish, edge quality, profile accuracy, cycle time, or wheel life.
Step 4: Select a starting grit range.
Use the chart as a starting point. Do not treat it as a fixed rule.
Step 5: Match the bond type.
The same grit size performs differently in resin, metal, vitrified, hybrid, or electroplated bonds.
Step 6: Check the CNC Tool Grinding Machine.
Confirm spindle speed, coolant delivery, wheel size, machine rigidity, and dressing method.
Step 7: Run a test grind.
Check tool finish, edge quality, geometry, heat marks, wheel wear, and cycle time.
Step 8: Record the final process.
Document wheel grit size, bond type, feed rate, wheel speed, coolant, dressing interval, and inspection results.
This workflow helps avoid the mistake of choosing a grinding wheel grit size from a generic chart without testing it on the actual CNC Tool Grinding Machine.
If tool quality is unstable, grit size may be part of the problem. The following table can help diagnose common issues.
Problem | Possible Grit-Related Cause | Recommended Correction |
Surface finish is too rough | Grit too coarse or wheel poorly dressed | Use finer grit or improve dressing |
Cycle time is too long | Grit too fine for roughing | Use coarser grit for the roughing stage |
Cutting edge chips | Grit too coarse or grinding force too high | Use finer finishing grit and reduce aggressive contact |
Wheel loads quickly | Grit too fine, structure too dense, or coolant poor | Review grit, bond, coolant, and dressing |
Tool burns | Wheel rubbing instead of cutting | Dress the wheel, improve coolant, and review grit size |
Wheel wears too fast | Wrong grit and bond combination | Review the full wheel specification |
Tool geometry drifts | Wheel profile wear or unsuitable bond | Check dressing, wheel shape, and profile retention |
Finish varies between batches | Wheel condition or process unstable | Standardize wheel dressing and CNC parameters |
On a CNC Tool Grinding Machine, troubleshooting should include the full process. A problem that looks like a grit size issue may also involve coolant, feed rate, spindle speed, dressing, bond type, or machine rigidity.
Micro carbide drills, micro end mills, and small precision tools require better edge control. This increases the use of fine and very fine grit wheels. However, fine grit requires better coolant delivery, accurate dressing, and stable CNC Tool Grinding Machine performance.
For micro tools, vibration is especially dangerous. A small amount of wheel runout or machine instability can damage the cutting edge. This makes the combination of machine rigidity and grit size more important than ever.
Many factories are bringing tool regrinding in-house to reduce tooling cost and shorten downtime. In-house regrinding requires flexible wheel selection because worn tools may have different edge conditions and stock removal needs.
A CNC Tool Grinder used for regrinding must balance two goals: removing enough material to restore the tool and preserving as much tool life as possible. In this case, grinding wheel grit size should be selected carefully to avoid over-grinding or edge damage.
Coated carbide tools require stable surface preparation. If the ground surface is too rough, too damaged, or thermally affected, coating performance may be reduced. Fine grit finishing is often useful before coating, but it must be supported by good coolant and wheel dressing.
A CNC Tool Grinding Machine used for coating-ready tools should provide stable finishing conditions and repeatable tool geometry. Grit size selection should support both surface quality and edge strength.
Manufacturers increasingly evaluate grinding by total cost per tool rather than wheel price alone. A coarse wheel may reduce cycle time but increase edge defects. A fine wheel may improve finish but increase grinding time. A cheaper wheel may cost more if it causes scrap, downtime, or frequent dressing.
The best grinding wheel grit size is the one that produces stable tool quality at the lowest practical cost.
Modern CNC Grinding Machines increasingly support process monitoring. Spindle load, cycle time, dressing interval, coolant condition, and tool inspection data can help determine whether a selected grit size is suitable for production.
This trend means grit selection is becoming more data-driven. Instead of relying only on operator experience, manufacturers can use actual grinding results to optimize wheel selection.
Many carbide tool grinding problems come from simple selection mistakes.
Common mistakes include:
Using one grit size for every carbide tool
Choosing the finest grit because it seems safer
Choosing coarse grit only to reduce cycle time
Ignoring wheel bond type
Ignoring coolant delivery
Ignoring dressing condition
Applying one test result to all tool types
Not recording successful wheel specifications
Ignoring spindle stability and machine rigidity
Judging wheel value only by purchase price
A CNC Tool Grinding Machine gives manufacturers repeatability, but repeatability only helps when the process is correct. If the grit size is wrong, the machine will repeat the wrong result.
When selecting wheels for a CNC Tool Grinding Machine, industrial buyers should provide more than a grit number. A better inquiry should include:
Information to Provide | Why It Matters |
Tool material | Confirms diamond wheel suitability for carbide |
Tool type | End mills, drills, reamers, burrs, and forming tools need different strategies |
Tool diameter | Small tools usually need finer finishing |
Grinding operation | Roughing and finishing require different grit choices |
Surface finish target | Determines how fine the wheel should be |
Current grinding problem | Helps identify whether grit is the real issue |
Machine model | Confirms spindle, wheel size, and coolant capability |
Coolant condition | Affects heat and wheel loading |
Production volume | Influences cost per tool and wheel life requirements |
Dressing method | Affects wheel surface condition and repeatability |
For manufacturers considering NASEIKO’s CNC Tool Grinding Machine or related CNC Grinding Machines, the wheel selection discussion should be connected with the machine application. A machine for carbide tools in 3C production may need different wheel support from a machine for general tool regrinding. A CNC Tool Grinder used for non-standard tools may require more flexible wheel configurations and grit options.
Grinding wheel grit size has a direct impact on carbide tool grinding quality. Coarse grit improves stock removal. Medium grit balances grinding efficiency and surface finish. Fine grit improves edge quality and precision finishing. Very fine grit supports micro tools and special finishing, but it requires strong process control.
For users of a CNC Tool Grinding Machine, grit size should be treated as part of a complete grinding system. The right choice depends on carbide tool type, grinding operation, diamond wheel specification, bond type, coolant, dressing, machine rigidity, and production goals.
A practical rule is simple: use coarser grit when stock removal is the priority, use finer grit when surface finish and edge quality are the priority, and use staged grinding when both productivity and precision are required.
A CNC Tool Grinder can make this strategy repeatable by controlling tool paths, feed rates, wheel movement, and grinding geometry. CNC Grinding Machines also help manufacturers standardize production, reduce operator variation, and improve tool consistency.
The best grinding wheel grit size is not always the finest grit or the fastest-cutting grit. It is the grit size that produces stable carbide tool quality, acceptable cycle time, manageable wheel life, and predictable cost per finished tool.
For carbide end mill flute grinding, medium grit is usually a good starting point because it balances material removal and surface finish. In many cases, 150–240 grit can be used for general flute grinding, while 320–400 grit may be used when better finish or edge control is required.
Yes. Roughing and finishing often benefit from different grit sizes. Roughing usually needs coarse or medium grit for faster stock removal. Finishing usually needs finer grit for better surface finish and cutting edge quality. A CNC Tool Grinding Machine can support this staged process through programmed wheel paths and grinding operations.
A fine grit wheel can still cause burn if it becomes loaded, dull, poorly dressed, or used with insufficient coolant. Burn marks are not only a grit size problem. Feed rate, wheel speed, coolant flow, dressing condition, and machine rigidity should also be checked.
For carbide tools, diamond grinding wheels are usually preferred because diamond performs well on hard non-ferrous materials such as tungsten carbide. CBN is generally more suitable for HSS, hardened steel, and other ferrous materials.
Run a controlled test using the actual carbide tool material, tool geometry, coolant, and machine settings. Check surface finish, edge quality, tool dimensions, spindle load, heat marks, wheel wear, and cycle time. If the result is stable and repeatable, record the wheel specification and CNC Tool Grinding Machine parameters for future production.
