In CNC tool grinding, wheel condition determines whether a cutting tool can be ground accurately, efficiently, and repeatedly. A diamond or CBN wheel may look strong and durable, but after repeated contact with carbide, HSS, hardened steel, drills, milling cutters, forming tools, and rotary burrs, its cutting surface changes. The wheel may become dull, loaded, glazed, out of shape, or unstable. Once this happens, the tool grinding result becomes difficult to control.

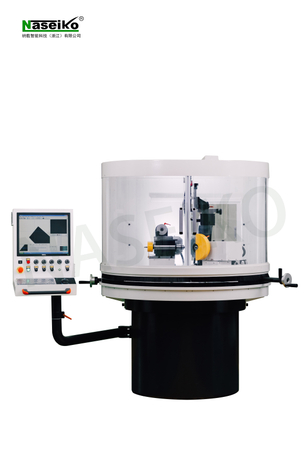

That is why a Grinding Wheel Dressing Machine is so important in modern tool manufacturing and tool regrinding. A Grinding Wheel Dressing Machine helps restore the cutting ability and profile accuracy of diamond and CBN grinding wheels. Instead of treating wheel dressing as a manual correction step, more workshops now use a Grinding Wheel Dressing Machine as part of a controlled tool grinding process.
For manufacturers using a CNC tool grinding machine, dressing is not only about making the wheel sharp again. It is about maintaining tool geometry, controlling surface finish, reducing burn, improving wheel life, and keeping production stable. Whether the application is dressing diamond grinding wheel for carbide tool grinding or preparing CBN wheels for steel tool grinding, the dressing method should match the wheel bond, tool material, machine setup, and grinding target.
This guide explains how to dress diamond and CBN grinding wheels for tool grinding, when to dress them, what problems dressing can solve, and why a Grinding Wheel Dressing Machine is often a better choice than inconsistent manual dressing methods.
Diamond and CBN grinding wheels are widely used in precision tool grinding because they can process difficult materials with high accuracy. Diamond wheels are commonly used for carbide tools, ceramics, glass, and other hard non-ferrous materials. CBN wheels are often used for hardened steels, HSS tools, and other ferrous materials. In both cases, the wheel must remain open, sharp, and geometrically accurate.
During grinding, abrasive grains cut the tool material. Over time, those grains become dull, fractured, or covered by grinding swarf. The spaces between grains may become clogged. The wheel may lose its intended shape. If the wheel face is no longer sharp and true, the CNC machine may still follow the programmed path, but the actual grinding result will not match the intended tool geometry.
A Grinding Wheel Dressing Machine solves this problem by restoring wheel cutting performance and wheel profile. In tool grinding, this is especially valuable because even a small wheel profile error can affect flute shape, clearance angle, rake angle, edge preparation, and final tool performance.
Poor wheel dressing can lead to:
Problem | Grinding result | Impact on cutting tool quality |
|---|---|---|
Wheel glazing | The wheel rubs instead of cuts | Burn marks, poor edge quality |
Wheel loading | Chips clog the abrasive surface | Rough finish, unstable grinding force |
Wheel runout | Wheel does not contact evenly | Chatter marks, dimensional error |
Profile loss | Wheel shape changes | Incorrect tool geometry |
Excessive dressing | Wheel wears too quickly | Higher wheel cost |
Insufficient dressing | Wheel stays dull | Heat, vibration, poor tool finish |
For this reason, a Grinding Wheel Dressing Machine should be seen as a process-control solution, not just a support device. In high-value tool grinding, wheel dressing directly affects tool cost, tool repeatability, and customer satisfaction.
Before learning how to dress diamond and CBN grinding wheels, it is important to understand the difference between dressing and truing. These two terms are often used together, but they do not mean the same thing.
Dressing is the process of restoring the cutting condition of the grinding wheel surface. It opens the wheel face, exposes fresh abrasive grains, removes loaded material, and improves cutting efficiency. Dressing diamond grinding wheel surfaces is especially important when the wheel begins to glaze or when carbide swarf blocks the cutting surface.
Truing is the process of correcting the wheel’s shape and running accuracy. It removes geometric error, restores the wheel profile, and helps the wheel run concentrically. For form grinding, flute grinding, step grinding, and tool profile grinding, truing is just as important as dressing.
A Grinding Wheel Dressing Machine can support both dressing and truing, depending on the machine structure and dressing method. In CNC tool grinding, this is valuable because the wheel must be sharp and accurately shaped at the same time.
Process | Main purpose | Typical result |
Dressing | Restores sharpness and chip clearance | Better cutting action and lower grinding heat |
Truing | Restores geometry and concentricity | Better profile accuracy and less vibration |
Profiling | Creates or restores a specific wheel form | Accurate tool shape and repeatable grinding |
Conditioning | General term for preparing wheel surface | Stable wheel behavior before production |
A Grinding Wheel Dressing Machine is especially useful when the wheel has a complex shape. Manual dressing may be enough for some simple operations, but tool grinding often requires plane, angle, arc, and formed profiles. A Grinding Wheel Dressing Machine gives the operator better control over these shapes.
The best time to dress a wheel is before tool quality becomes unacceptable. Many workshops wait until burn marks, chatter, poor finish, or dimensional errors appear. However, once these defects appear, the tool may already be rejected. A more efficient approach is to use process signals to decide when dressing is needed.
A Grinding Wheel Dressing Machine should be used when wheel performance begins to change, not only when the wheel completely fails. In tool grinding, early dressing can protect tool quality and prevent unnecessary scrap.
Common signs that dressing is needed include:
Sign during tool grinding | Possible wheel condition | Suggested action |
Higher spindle load | Wheel is dull or loaded | Dress the wheel surface |
Lower cutting efficiency | Wheel grains are not cutting freely | Open the wheel with dressing |
Poor surface finish | Wheel face is uneven or loaded | Dress and inspect wheel profile |
Tool burning | Heat from rubbing or poor chip removal | Dress wheel and check coolant |
Chatter marks | Wheel runout or imbalance | True the wheel and check mounting |
Dimensional drift | Profile loss or wheel wear | Use a Grinding Wheel Dressing Machine to restore geometry |
Inconsistent edge quality | Wheel surface is unstable | Dress, true, and review grinding parameters |
For vitrified CBN wheels, dressing intervals may be longer than conventional wheels because the wheel can hold its structure well. However, the dressing interval still depends on the tool material, grinding pressure, wheel bond, coolant, speed, and required finish. A Grinding Wheel Dressing Machine helps make the dressing interval more predictable because it controls the dressing motion more accurately.
A Grinding Wheel Dressing Machine works by bringing a dressing tool or dressing wheel into controlled contact with the grinding wheel that needs conditioning. Through relative motion, speed difference, feed movement, and controlled infeed, the machine removes a small amount of bond and abrasive material from the wheel surface. This exposes fresh cutting grains and restores the wheel’s profile.
In tool grinding, a Grinding Wheel Dressing Machine may be used for diamond wheels, CBN wheels, and multiple wheel packs. Depending on the machine design, it can dress flat faces, side faces, angles, arcs, and formed wheel profiles. This capability is important because tool grinding wheels often have shapes that correspond directly to the cutting tool geometry.
A Grinding Wheel Dressing Machine usually supports several key functions:
Wheel face dressing
Side face dressing
Angle dressing
Outer arc dressing
Form grinding wheel dressing
Single wheel dressing
Multiple wheel pack dressing
Optical measurement or profile checking
Controlled axis movement
Repeatable dressing cycles
When a Grinding Wheel Dressing Machine is equipped with optical measurement, magnification, grating measurement, or CCD inspection, it can help operators confirm the dressed wheel profile more clearly. This is useful for small tool grinding, complex form tools, and high-precision regrinding jobs.
Dressing diamond grinding wheel surfaces requires careful control. Diamond wheels are often used for carbide tool grinding, and carbide swarf can load the wheel surface. If the wheel becomes loaded or glazed, it may generate heat and damage the cutting edge.
A Grinding Wheel Dressing Machine makes dressing diamond grinding wheel surfaces more stable because it controls contact, feed, and movement more consistently than hand dressing.
Before using a Grinding Wheel Dressing Machine, inspect the wheel for cracks, chips, abnormal wear, contamination, and mounting problems. Check whether the wheel is still suitable for the tool grinding operation. If the wheel is physically damaged, do not attempt to solve the problem only through dressing.
Decide whether the wheel needs dressing, truing, or profiling. If the wheel is cutting poorly but the shape is still correct, dressing may be enough. If the wheel profile has changed, truing or profiling is required. A Grinding Wheel Dressing Machine should be set according to the actual purpose.
A dirty flange, adapter, or dressing contact surface can create runout. Before dressing diamond grinding wheel surfaces, clean the wheel, adapter, and machine contact areas. This is especially important for precision CNC tool grinding.
For some diamond wheels, a dressing stick, silicon carbide wheel, aluminum oxide wheel, brake dresser, or rotary diamond dresser may be used depending on wheel bond and application. A Grinding Wheel Dressing Machine can support controlled contact and movement, making the method more repeatable.
Avoid aggressive infeed. Over-dressing wastes the abrasive layer and shortens wheel life. A Grinding Wheel Dressing Machine should remove only enough material to open the wheel surface or restore the required shape.
After dressing diamond grinding wheel surfaces, inspect the wheel face. The wheel should appear open and ready to cut. It should not be heavily loaded, shiny, or uneven. If the tool finish is still poor, check coolant, wheel speed, feed rate, and machine rigidity.
For repeatable tool grinding, record the dressing frequency, infeed, feed speed, wheel type, tool material, and final grinding result. A Grinding Wheel Dressing Machine is most valuable when it is used as part of a documented production process.
CBN wheels are often used for tool steels, HSS tools, and hardened ferrous materials. Compared with conventional wheels, CBN wheels can provide long service life and stable performance, but they still require correct preparation and dressing.
A Grinding Wheel Dressing Machine can be used to true and dress CBN wheels before production. This is important because an untrued CBN wheel may create poor finish, unstable stock removal, and shorter wheel life.
CBN wheels should be mounted with attention to runout. If the wheel is not mounted correctly, even a good Grinding Wheel Dressing Machine cannot fully compensate for mechanical error. Check flange surfaces, spindle condition, and adapter cleanliness.
If the wheel does not run true, truing should be done before dressing. Truing presents the wheel face properly to the workpiece. In tool grinding, this helps avoid chatter, uneven finish, and geometry errors.
After truing, the wheel surface may still need dressing. A Grinding Wheel Dressing Machine opens the surface and helps expose cutting grains. This allows the CBN wheel to cut more freely.
CBN wheels, especially vitrified CBN wheels, should be dressed with controlled parameters. Excessive force can damage the wheel surface. Too little dressing may leave the wheel dull. A Grinding Wheel Dressing Machine helps maintain consistent infeed and traverse motion.
During production, grinding power and tool finish can help determine when the next dressing cycle is needed. If power rises, finish changes, or burn appears, the wheel may need dressing. A Grinding Wheel Dressing Machine can then restore the wheel before quality problems become severe.
Diamond and CBN wheels are both superabrasive wheels, but their dressing needs are not identical. The application, workpiece material, bond type, and wheel structure all affect dressing strategy.
Item | Diamond grinding wheel | CBN grinding wheel |
Common tool grinding use | Carbide tools, ceramics, hard non-ferrous materials | HSS, hardened steel, ferrous tool materials |
Common dressing issue | Carbide loading, glazing, loss of sharpness | Runout, surface dullness, bond control |
Dressing focus | Open wheel face and restore cutting ability | True wheel face and maintain stable cutting |
Dressing frequency | Depends on carbide material, wheel bond, coolant, and finish | Often longer interval, but still process-dependent |
Equipment recommendation | Grinding Wheel Dressing Machine for controlled diamond wheel dressing | Grinding Wheel Dressing Machine for CBN truing and dressing |
Main quality risk if ignored | Burn, poor edge quality, poor carbide tool finish | Chatter, finish variation, lower wheel life |
For dressing diamond grinding wheel surfaces, the main goal is often to remove loading and expose sharp grains. For CBN wheels, the main goal may include both truing and controlled dressing to prepare the wheel face. In both cases, a Grinding Wheel Dressing Machine improves process repeatability.
The performance of a Grinding Wheel Dressing Machine depends not only on the machine itself, but also on the dressing parameters. The most important parameters include dressing speed, velocity ratio, overlap ratio, depth of dress, traverse rate, and dressing interval.
Velocity ratio describes the relationship between the speed of the dressing tool and the speed of the grinding wheel. In rotary dressing, this ratio affects how the bond is removed and how fresh abrasive grains are exposed. A Grinding Wheel Dressing Machine with controlled rotational movement helps maintain this relationship more consistently.
Overlap ratio describes how the dresser traverses across the wheel face. If the overlap is too low, the dressing pattern may be uneven. If it is too high, dressing may be too slow or may create an overly smooth wheel surface. A Grinding Wheel Dressing Machine allows more controlled traverse movement than manual dressing.
Depth of dress determines how much material is removed per pass. A light depth of dress may be suitable for refreshing the wheel surface. A deeper pass may be required for profile correction, but too much depth can waste wheel material. A Grinding Wheel Dressing Machine should be set to remove only the required amount.
Dressing interval is the frequency at which the wheel is dressed. The right interval depends on grinding load, wheel type, tool material, coolant, finish requirement, and production volume. A Grinding Wheel Dressing Machine helps standardize this interval, especially in batch production.
Parameter | If too low | If too high |
Dressing infeed | Wheel remains dull or loaded | Excess wheel wear |
Traverse speed | Uneven dressing or poor productivity | Poor wheel surface control |
Dressing frequency | Burn, poor finish, unstable grinding | Shortened wheel life |
Dressing pressure | Poor opening of wheel face | Wheel surface damage |
Coolant during dressing | Heat and debris accumulation | Usually not a problem if controlled |

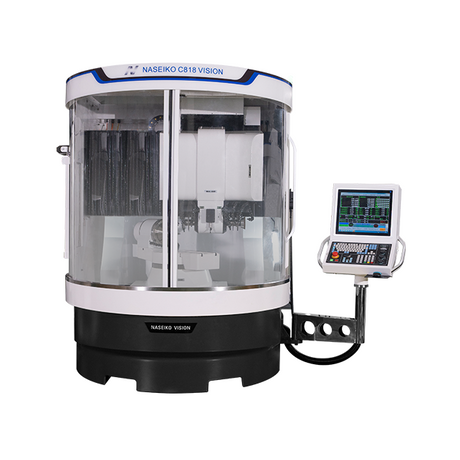

A CNC tool grinding machine depends on accurate wheel condition. The machine can control axis motion, spindle speed, feed rate, and tool path, but the wheel still performs the cutting. If the wheel is dull, loaded, or out of profile, the CNC program cannot deliver the intended result.
A Grinding Wheel Dressing Machine supports CNC tool grinding quality in several ways.
First, it helps maintain wheel geometry. If the wheel profile changes, the tool geometry changes. This is critical when grinding flutes, points, steps, radii, and forming tools.
Second, a Grinding Wheel Dressing Machine improves cutting efficiency. A sharp and open wheel cuts with lower friction, reducing heat and helping avoid tool burning.
Third, a Grinding Wheel Dressing Machine improves repeatability. When dressing is controlled, operators can reproduce the same wheel condition across batches.
Fourth, a Grinding Wheel Dressing Machine helps reduce tool cost. Stable dressing can extend wheel life and reduce rejected tools.
Fifth, a Grinding Wheel Dressing Machine supports regrinding operations. In tool regrinding, worn tools may have inconsistent edge conditions. A stable wheel helps restore tool geometry more reliably.
Even experienced workshops can make mistakes when dressing superabrasive wheels. These mistakes can reduce wheel life, damage tool quality, or make CNC grinding unstable.
Mistake | Why it causes problems | Better practice |
Dressing only after visible defects appear | Tools may already be damaged | Use power, finish, and process data as early signals |
Using the same dressing method for all wheels | Different bonds need different dressing strategies | Match dressing method to diamond, CBN, resin, vitrified, or metal bond wheels |
Over-dressing the wheel | Wastes abrasive layer and increases cost | Use controlled light passes |
Ignoring truing | Wheel may be sharp but geometrically inaccurate | True the wheel when profile or runout changes |
Manual dressing for complex profiles | Low repeatability | Use a Grinding Wheel Dressing Machine for formed wheel profiles |
No process records | Hard to repeat successful grinding | Record dressing parameters and results |
Poor coolant control | Dressing and grinding results become unstable | Check coolant flow, filtration, and concentration |
A Grinding Wheel Dressing Machine reduces many of these risks because it turns dressing into a controlled, measurable process.
Tool grinding is becoming more automated, more precise, and more data-driven. As a result, the role of a Grinding Wheel Dressing Machine is changing. It is no longer just a separate maintenance machine. It is becoming part of the overall tool grinding workflow.
Many manufacturers are bringing tool regrinding in-house to reduce tooling cost and improve production continuity. This increases the need for a Grinding Wheel Dressing Machine because regrinding requires stable wheel condition over repeated tool repair cycles.
Carbide tools are used heavily in 3C manufacturing, mold making, aerospace, automotive, and precision machining. Dressing diamond grinding wheel surfaces correctly becomes more important because carbide tool edge quality directly affects machining performance.
Modern cutting tools include variable helix designs, step profiles, micro features, forming geometries, and custom shapes. These tools require wheels with accurate profiles. A Grinding Wheel Dressing Machine helps maintain the wheel shape needed for these geometries.
Workshops are moving away from experience-only dressing and toward measurable dressing. Optical measurement, magnification, grating systems, and CCD inspection help operators verify the wheel profile after dressing. A Grinding Wheel Dressing Machine with measurement support fits this trend.
Manufacturers increasingly evaluate grinding performance by cost per finished tool. A Grinding Wheel Dressing Machine can help reduce cost by improving wheel life, reducing scrap, and stabilizing tool quality.
When choosing a Grinding Wheel Dressing Machine, manufacturers should focus on the actual wheel types and tool grinding applications they need to support. The best machine is not always the most complex one. It should match wheel material, wheel size, profile requirements, production volume, and inspection needs.
Key selection factors include:
Selection factor | Why it matters |
Diamond and CBN wheel compatibility | Tool grinding often uses both wheel types |
Plane, angle, arc, and form dressing | Cutting tool wheels may require complex profiles |
Single and multiple wheel support | CNC tool grinding often uses wheel packs |
Axis adjustability | More adjustment improves dressing flexibility |
Optical measurement | Helps verify small profiles and dressing accuracy |
Ease of operation | Reduces operator error |
Dressing repeatability | Improves batch-to-batch tool consistency |
Machine rigidity | Supports stable dressing contact |
Supplier support | Helps optimize real production use |
A Grinding Wheel Dressing Machine should also fit the workflow of the CNC tool grinding machine. If the tool grinding department handles carbide end mills, drills, forming cutters, and rotary burrs, the dressing machine should support different wheel forms and adjustment needs.
A simple workflow can help operators use a Grinding Wheel Dressing Machine more effectively.
Identify the tool material and grinding wheel type.
Check whether the wheel needs dressing, truing, or profiling.
Inspect wheel mounting, flange, adapter, and spindle condition.
Set up the Grinding Wheel Dressing Machine according to wheel type.
Apply controlled dressing passes with suitable infeed and traverse.
Inspect the wheel face and profile after dressing.
Run a test grind on a sample tool if needed.
Check surface finish, edge condition, and tool geometry.
Adjust dressing parameters if results are not stable.
Record successful parameters for future batches.
This workflow helps turn dressing from a reactive maintenance task into a repeatable production process.
Dressing diamond and CBN grinding wheels is essential for high-quality tool grinding. A wheel that is dull, loaded, glazed, or out of shape cannot produce stable cutting tools, even on a capable CNC tool grinding machine. Proper dressing restores wheel sharpness, improves chip clearance, reduces heat, and supports accurate tool geometry.
A Grinding Wheel Dressing Machine makes the dressing process more controlled and repeatable. It helps operators dress diamond and CBN wheels, restore plane and angle surfaces, correct arcs and formed profiles, and maintain grinding performance across different tool types. For manufacturers focused on carbide tool grinding, HSS tool regrinding, and precision cutting tool production, a Grinding Wheel Dressing Machine can directly improve quality control and cost efficiency.
The best dressing strategy is not simply dressing more often. It is dressing correctly. By understanding the difference between dressing and truing, monitoring wheel performance, selecting suitable dressing parameters, and using a reliable Grinding Wheel Dressing Machine, tool grinding workshops can achieve better wheel life, better tool quality, and more predictable CNC grinding results.
The best method depends on the wheel bond, grit size, tool material, and grinding requirement. For carbide tool grinding, dressing diamond grinding wheel surfaces usually focuses on removing loading and exposing sharp abrasive grains. A Grinding Wheel Dressing Machine is recommended when the wheel requires repeatable profile accuracy or controlled dressing movement.
Yes, a suitable Grinding Wheel Dressing Machine can be used for both diamond and CBN grinding wheels if it is designed for those wheel types. However, the dressing method, infeed, speed, and dressing tool may differ depending on whether the wheel is diamond, CBN, resin bond, vitrified bond, or metal bond.
CBN wheels can have long service life, but they can still become dull, loaded, or out of true. Dressing helps open the wheel surface, while truing restores geometry. In precision tool grinding, even a long-life CBN wheel needs proper preparation and monitoring.
Wheel dressing affects cutting tool edge quality by controlling grinding heat, cutting force, surface finish, and wheel profile accuracy. A properly dressed wheel cuts more freely and produces a more stable edge. A poorly dressed wheel may cause burn, chipping, chatter, or inconsistent tool geometry.
Manual dressing may be acceptable for simple wheel maintenance, but it is often not enough for complex CNC tool grinding wheels. When the wheel has an angle, arc, formed profile, or multiple-wheel setup, a Grinding Wheel Dressing Machine provides better control, accuracy, and repeatability.
