In CNC tool grinding, the condition of the grinding wheel directly affects cutting tool accuracy, edge quality, surface finish, cycle time, and production cost. A grinding wheel may still look usable from the outside, but if it becomes dull, loaded, glazed, out of profile, cracked, or thermally damaged, it can no longer produce reliable grinding results. This is why every tool room and cutting tool manufacturer needs a clear decision process for when to dress and when to replace a grinding wheel.
A Grinding Wheel Dressing Machine plays an important role in that process. Instead of replacing a grinding wheel too early or using a poor wheel for too long, operators can use a Grinding Wheel Dressing Machine to restore cutting ability, correct wheel geometry, and extend usable wheel life. However, dressing is not always the answer. There are also situations where the grinding wheel should be replaced immediately for safety, accuracy, or productivity reasons.

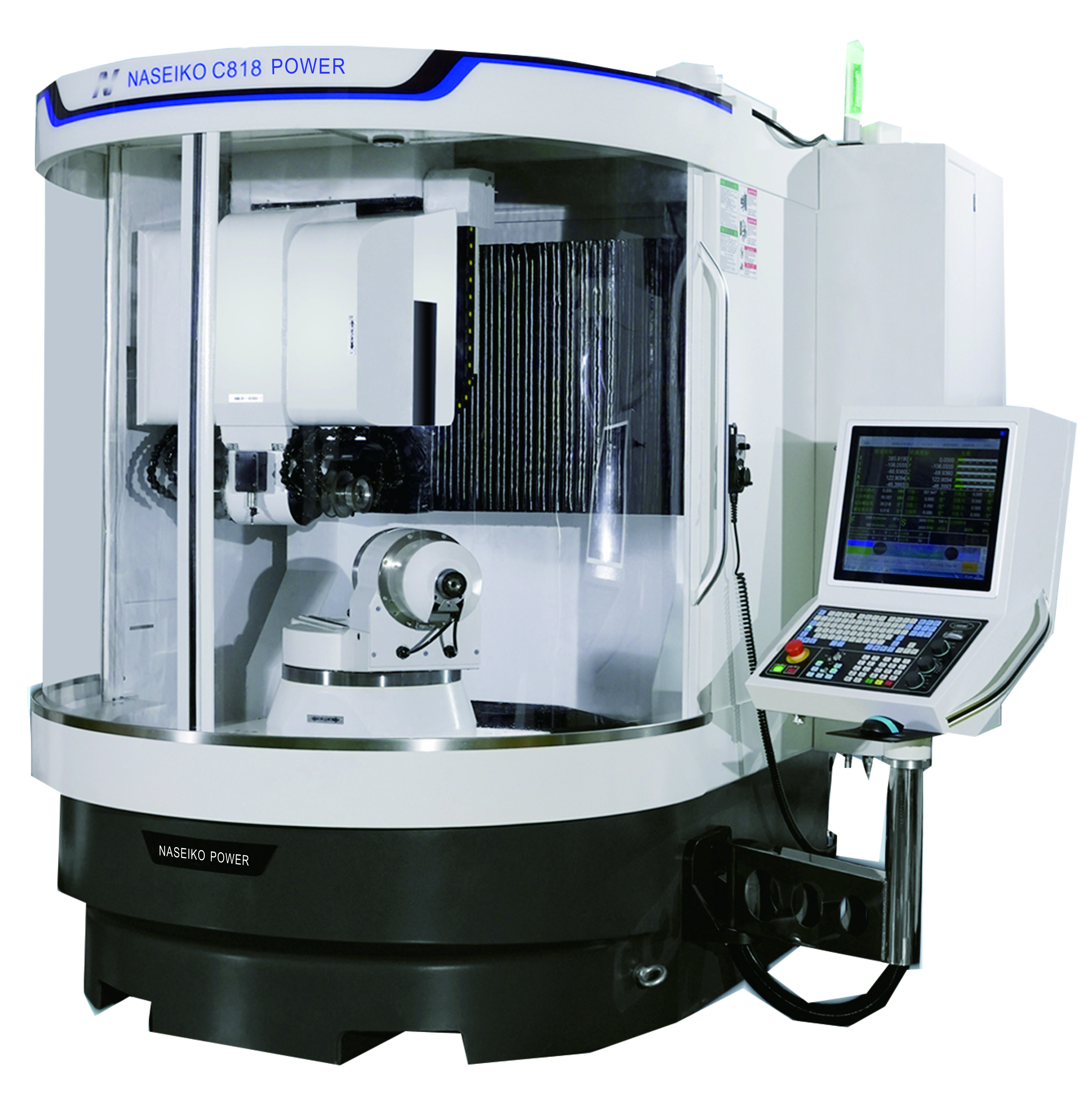

For workshops using a CNC tool grinding machine, this decision becomes even more important. CNC grinding depends on repeatable wheel shape, stable abrasive exposure, controlled grinding force, and predictable heat generation. If the wheel condition changes, the CNC program may still run correctly, but the actual tool geometry may drift. Tool edges may burn, flute forms may change, and batch quality may become unstable.
This article explains when to dress or replace a grinding wheel in CNC tool grinding, how to identify early warning signs, how a Grinding Wheel Dressing Machine supports process stability, and how manufacturers can build a practical wheel maintenance strategy.
A grinding wheel is not just a consumable. In CNC tool grinding, it is a precision cutting tool. It shapes drills, milling cutters, taps, thread tools, forming tools, rotary burrs, and carbide tools. When the wheel surface is sharp, open, and accurate, the grinding process is stable. When the wheel surface becomes dull or distorted, tool quality changes.
A Grinding Wheel Dressing Machine helps maintain this condition by removing dull abrasive grains, clearing loaded material, exposing fresh cutting points, and restoring the wheel profile. In many cases, proper dressing can solve grinding problems without replacing the wheel.
The grinding wheel condition affects:
Wheel condition factor | Impact on CNC tool grinding |
|---|---|
Abrasive sharpness | Determines whether the wheel cuts freely or rubs |
Wheel loading | Affects heat, finish, and cutting efficiency |
Wheel profile accuracy | Controls tool geometry and form accuracy |
Wheel runout | Influences vibration, chatter, and surface quality |
Wheel diameter | Affects speed, contact condition, and usable life |
Bond condition | Controls grain release and cutting behavior |
Wheel damage | Creates safety risks and poor grinding results |
A Grinding Wheel Dressing Machine is most valuable when the wheel is still structurally safe but no longer cutting or holding shape correctly. If the wheel is cracked, severely chipped, or beyond its usable size, dressing should not be used as a substitute for replacement.
The first step is to understand the difference between dressing and replacement.
Dressing restores the working surface of a grinding wheel. It removes dulled abrasive, clears loading, exposes new grains, and can help return the wheel to a more effective cutting condition. A Grinding Wheel Dressing Machine is used when the wheel still has usable abrasive material and no unsafe structural damage.
Replacement means removing the grinding wheel from service and installing a new one. Replacement is required when the wheel is unsafe, too small, severely damaged, incorrectly specified, or no longer economical to maintain.
Decision | Use when | Main purpose |
Dress the grinding wheel | Wheel is dull, loaded, glazed, slightly out of profile, or producing poor finish | Restore cutting ability and geometry |
True the grinding wheel | Wheel has runout or shape error | Restore concentricity and profile accuracy |
Replace the grinding wheel | Wheel is cracked, chipped, too small, wrong specification, or no longer economical | Restore safety and process reliability |
Review process settings | Wheel problems repeat after dressing | Correct speed, feed, coolant, dressing cycle, or wheel selection |
A Grinding Wheel Dressing Machine should be part of a controlled maintenance strategy, not an emergency-only tool. When operators wait until the grinding wheel creates obvious defects, tool scrap may already have occurred.
A grinding wheel often gives clear signs before it fails completely. These signs may appear in sound, surface finish, spindle load, tool quality, or process stability. In CNC tool grinding, operators should treat these signals seriously because they can predict tool defects before final inspection.
If the grinding wheel no longer removes material efficiently, dressing may be needed. The wheel may be dull or glazed. Operators may notice that the CNC cycle takes longer, the spindle load increases, or more pressure is required to achieve the same result. A Grinding Wheel Dressing Machine can restore cutting ability by opening the wheel surface.
Burn marks on carbide or HSS tools often indicate excessive heat. One cause is a dull or loaded grinding wheel that rubs instead of cuts. Dressing the wheel can reduce friction and improve chip clearance. However, coolant flow, feed rate, and wheel speed should also be checked.
A loaded or worn grinding wheel can produce rough finishes, scratches, or uneven tool surfaces. If the wheel face is contaminated with grinding swarf, dressing may improve the finish. A Grinding Wheel Dressing Machine can help produce a more controlled wheel surface than manual dressing.
Chatter can come from wheel runout, imbalance, poor truing, machine vibration, or excessive grinding force. If the grinding wheel is not running true, a Grinding Wheel Dressing Machine may be used to correct the profile or face condition. If the wheel is damaged, replacement may be required.
When tool dimensions gradually move out of tolerance, the wheel profile may be wearing or changing. This is especially important in flute grinding, step grinding, radius grinding, and form grinding. A Grinding Wheel Dressing Machine can restore the grinding wheel shape and help maintain tool geometry.
Loading happens when workpiece material fills the spaces between abrasive grains. In tool grinding, carbide swarf, steel particles, bond debris, and coolant residue can clog the grinding wheel. A loaded wheel generates heat and cuts poorly. Dressing is usually the first corrective action.
Dressing is useful, but it has limits. A Grinding Wheel Dressing Machine cannot make an unsafe or unsuitable grinding wheel safe. Replacement is required when the wheel can no longer perform safely or economically.
Replace the grinding wheel immediately if you see:
Replacement signal | Why replacement is required |
Visible cracks | Safety risk during high-speed rotation |
Severe edge chipping | Unstable grinding contact and safety concern |
Wheel below minimum usable diameter | Speed, contact, and mounting issues |
Repeated burn after dressing | Wheel specification or structure may be wrong |
Excessive profile loss | Dressing cost may exceed wheel value |
Abnormal vibration after truing | Possible structural or mounting issue |
Wrong abrasive or bond for material | Dressing cannot correct poor wheel selection |
Contamination or damage from storage | Wheel reliability may be compromised |
A Grinding Wheel Dressing Machine should not be used to “save” a wheel that has structural damage. Safety always comes before wheel cost. If the wheel has cracks, deep chips, unknown impact history, or questionable integrity, replacement is the correct decision.
The following table can help tool room operators decide whether to dress or replace a grinding wheel.
Problem observed | Likely cause | Dress or replace? | Recommended action |
Wheel cuts slowly | Dull abrasive or glazing | Dress | Use a Grinding Wheel Dressing Machine to open the wheel face |
Tool burn appears | Heat from rubbing or poor coolant | Dress first, then inspect | Dress wheel and check coolant delivery |
Surface finish becomes rough | Wheel loading or grit exposure issue | Dress | Clear wheel face and inspect finish |
Tool dimensions drift | Wheel profile wear | Dress or true | Restore profile with a Grinding Wheel Dressing Machine |
Chatter starts suddenly | Runout, imbalance, or damage | Inspect first | True if safe; replace if damaged |
Wheel has visible crack | Structural damage | Replace | Remove from service immediately |
Wheel wears extremely fast | Wrong specification or over-dressing | Review and possibly replace | Check abrasive, bond, grit, and dressing method |
Same issue returns after every dressing | Process mismatch | Replace or reselect | Review wheel type, machine parameters, and coolant |
This table is useful because it separates correctable wheel surface problems from unsafe or uneconomical wheel problems.
A Grinding Wheel Dressing Machine extends wheel life by removing only the necessary amount of abrasive and bond material to restore cutting performance. Manual dressing can be inconsistent. One operator may apply too much pressure; another may dress too lightly. In both cases, wheel life and tool quality become unpredictable.
A Grinding Wheel Dressing Machine improves control in several ways:
It creates repeatable dressing motion.
It helps restore wheel shape accurately.
It can support plane, angle, arc, and form dressing.
It reduces operator dependence.
It helps maintain grinding wheel concentricity.
It supports single-wheel and multi-wheel dressing.
It can make dressing parameters easier to record.
It helps stabilize CNC tool grinding quality over time.
In tool grinding, wheel geometry matters as much as wheel sharpness. If the grinding wheel has a specific profile, angle, or radius, manual dressing may not be accurate enough. A Grinding Wheel Dressing Machine can restore these forms more consistently, helping reduce tool geometry errors.
Dressing is more cost-effective when the wheel still has enough usable abrasive layer and the main problem is surface condition or minor profile wear. In these cases, a Grinding Wheel Dressing Machine can restore the wheel and delay replacement.
Dressing is usually more economical when:
The grinding wheel is dull but not damaged.
The wheel is loaded with grinding swarf.
The wheel has minor glazing.
The wheel profile needs correction.
Tool finish can be restored after dressing.
Wheel diameter is still within the usable range.
Dressing time is shorter than wheel change and setup time.
The wheel is expensive, such as diamond or CBN wheels.
For diamond and CBN wheels, proper dressing is especially important because these wheels often have a higher purchase price. A Grinding Wheel Dressing Machine helps protect that investment by making the wheel usable for more cycles.
Replacement is more cost-effective when dressing consumes too much time, removes too much abrasive, or fails to restore quality. A wheel that requires constant dressing may be more expensive than a new, correctly specified wheel.
Replacement is usually better when:
The grinding wheel has structural damage.
The wheel is too small for safe or accurate operation.
The wheel is the wrong specification for the tool material.
The bond is too hard or too soft for the process.
Tool defects return quickly after dressing.
Dressing frequency becomes excessive.
The wheel profile can no longer be restored.
The wheel causes repeated downtime or scrap.
A Grinding Wheel Dressing Machine can improve process stability, but it cannot fix every wheel problem. If the grinding wheel is mismatched to carbide, HSS, hardened steel, or the required tool geometry, replacement with a better wheel specification may be the only practical solution.
There is no universal dressing interval for every grinding wheel. Dressing frequency depends on material, wheel type, bond, grit size, coolant, feed rate, wheel speed, tool geometry, and required finish.
For example, a diamond grinding wheel used for carbide flute grinding may need dressing based on loading and edge quality. A CBN grinding wheel used for HSS tools may require dressing based on grinding force, surface finish, or dimensional drift. A form wheel may require dressing when the profile begins to change, even if the surface still cuts well.
A practical dressing interval should consider:
Factor | Effect on dressing frequency |
Tool material | Carbide, HSS, and hardened steel load wheels differently |
Stock removal | Heavy grinding usually requires more frequent dressing |
Surface finish requirement | Finer finish may require more controlled wheel condition |
Wheel bond | Resin, vitrified, metal, and hybrid bonds behave differently |
Coolant quality | Poor coolant can increase loading and heat |
Machine rigidity | Vibration can accelerate wheel wear |
Tool geometry | Complex tools may need more accurate wheel profiles |
Production volume | Long batch runs need planned dressing intervals |
A Grinding Wheel Dressing Machine helps make dressing frequency more predictable. Instead of relying only on operator feel, manufacturers can connect dressing intervals to measurable signals such as spindle power, cycle count, tool finish, and dimensional stability.
A good dressing schedule should be based on real production data. The goal is not to dress as often as possible. The goal is to dress at the right time with the right amount of material removal.
A practical schedule can include:
Initial wheel inspection after mounting.
Truing after wheel installation if needed.
First controlled dressing before production.
Trial grind and inspection of tool quality.
Dressing after a defined number of tools or cycles.
Dressing based on spindle load increase.
Dressing based on surface finish change.
Dressing based on tool dimension drift.
Review of wheel life and dressing depth.
Replacement when wheel reaches end-of-life criteria.
A Grinding Wheel Dressing Machine should be used with recorded parameters. These parameters may include dressing infeed, traverse speed, dressing wheel speed, number of passes, coolant condition, and final inspection result.
When this data is collected, the workshop can compare wheel cost, dressing time, tool rejection rate, and cycle time. This makes it easier to decide whether the wheel should be dressed more efficiently, dressed less often, or replaced with a different specification.
Some grinding operations use in-machine dressing, where the grinding wheel is dressed while mounted on the grinding machine. Other operations use an external Grinding Wheel Dressing Machine. Each method has advantages.
In-machine dressing can be convenient because the wheel stays in the grinding machine. It can reduce handling and help maintain wheel position. It is useful when the CNC grinding machine has integrated dressing capability.
An external Grinding Wheel Dressing Machine can be more flexible for specialized dressing tasks, especially when the wheel needs plane, angle, circular arc, or form dressing. It can also be useful for multiple wheel packs, diamond wheels, CBN wheels, and dedicated tool room workflows.
Method | Advantages | Best use case |
In-machine dressing | No need to remove wheel; can fit automated cycles | Production grinding with integrated dressing system |
External Grinding Wheel Dressing Machine | Flexible wheel profile control; useful for diamond/CBN wheels | Tool rooms, wheel preparation, profile correction |
Manual dressing | Simple and low-cost | Basic maintenance or non-critical grinding |
Rotary dressing | Fast and repeatable | High-volume or profile-sensitive grinding |
For CNC tool grinding, the best method depends on machine setup, wheel type, production volume, and accuracy requirement. Many workshops benefit from a dedicated Grinding Wheel Dressing Machine because cutting tool wheels often require precise form control.
Diamond and CBN grinding wheels are commonly used in tool grinding. Diamond wheels are often used for carbide tools, while CBN wheels are often used for HSS and hardened steel tools. Both wheel types need proper dressing and truing, but their behavior differs.
A diamond grinding wheel may need dressing when carbide material loads the wheel face, cutting efficiency drops, or tool burn appears. A CBN grinding wheel may need dressing or truing when the wheel loses cutting ability, profile accuracy, or stable contact.
A Grinding Wheel Dressing Machine for diamond and CBN wheels should support controlled dressing movement and accurate geometry restoration. This is important because superabrasive wheels are expensive, and excessive dressing wastes valuable abrasive material.
Wheel type | Common tool grinding use | Dressing trigger |
Diamond grinding wheel | Carbide tools, ceramics, hard non-ferrous materials | Loading, glazing, poor edge finish |
CBN grinding wheel | HSS tools, hardened steel, ferrous tools | Runout, dullness, finish change |
Resin bond wheel | General tool grinding and finishing | Loading or reduced cutting |
Vitrified bond wheel | Precision grinding and form holding | Profile correction or surface conditioning |
Metal bond wheel | Long wear applications | Controlled opening of wheel face |
A Grinding Wheel Dressing Machine should be selected according to the wheel type and the required tool grinding result.
Coolant problems often look like wheel problems. If coolant flow is poor, a grinding wheel may load faster, generate more heat, and require more frequent dressing. In some cases, operators may replace a wheel unnecessarily when the real problem is coolant delivery.
Before deciding to replace a grinding wheel, check:
Coolant nozzle direction
Coolant pressure
Coolant flow rate
Coolant concentration
Coolant filtration
Coolant contamination
Swarf buildup around the grinding zone
Whether coolant reaches the actual contact point
A Grinding Wheel Dressing Machine can restore a loaded or glazed wheel, but if coolant remains poor, the same problem will return. Therefore, dressing decisions should always be connected to coolant inspection.
Several trends are making wheel dressing and replacement decisions more important.
Many factories are bringing tool regrinding in-house to reduce tooling cost and shorten response time. This means tool rooms must manage grinding wheel condition more carefully. A Grinding Wheel Dressing Machine helps standardize wheel maintenance for daily tool regrinding.
Carbide tools are widely used in 3C, mold, automotive, aerospace, medical, and precision machining. These tools require stable diamond wheel condition. Dressing helps keep edge quality consistent and reduces unnecessary tool replacement.
Modern cutting tools often include variable helix flutes, step forms, micro features, radii, chamfers, and custom profiles. These geometries depend on accurate wheel shape. A Grinding Wheel Dressing Machine helps restore the wheel profile needed for these applications.
Manufacturers increasingly evaluate grinding by cost per tool, not only wheel price. Dressing can reduce wheel cost, but over-dressing can increase cost. Replacement can be expensive, but using a bad wheel can cost even more through scrap and downtime.
Modern workshops monitor spindle load, cycle time, tool finish, wheel wear, and dressing intervals. A Grinding Wheel Dressing Machine becomes more valuable when its parameters can be linked to process data and repeatable tool quality.
The following checklist can help operators decide when to dress or replace a grinding wheel.
Check item | Dress if | Replace if |
Wheel surface | Dull, glazed, or loaded | Cracked, broken, or severely damaged |
Tool finish | Slightly rough or inconsistent | Defects return immediately after dressing |
Tool geometry | Minor profile drift | Profile cannot be restored |
Wheel diameter | Still within usable range | Below safe or practical size |
Grinding force | Gradually increasing | Abnormal force remains after dressing |
Vibration | Caused by runout or poor truing | Caused by damage or unstable structure |
Wheel specification | Correct but worn | Wrong abrasive, bond, or grit |
Cost | Dressing restores quality efficiently | Dressing frequency becomes excessive |
A Grinding Wheel Dressing Machine should be part of this checklist. It gives the operator a controlled method to restore the grinding wheel before replacement becomes necessary.
Many grinding problems continue because workshops make the wrong decision at the wrong time.
Common mistakes include:
Replacing a wheel that only needed dressing.
Dressing a wheel that should have been replaced.
Ignoring visible damage.
Waiting until tool defects appear before dressing.
Dressing too aggressively and shortening wheel life.
Using manual dressing for complex wheel forms.
Not recording dressing parameters.
Blaming the grinding wheel when coolant is the real problem.
Using the same dressing interval for every tool material.
Continuing to use the wrong wheel specification.
A Grinding Wheel Dressing Machine helps reduce these mistakes, but only when operators understand the difference between surface condition, geometry condition, and structural wheel damage.
When a grinding problem appears, use this workflow:
Stop and inspect the tool defect.
Inspect the grinding wheel surface.
Check for cracks, chips, or unsafe damage.
If unsafe, replace the wheel immediately.
If safe but dull or loaded, dress the wheel.
If profile error exists, true or form dress the wheel.
Check coolant flow and filtration.
Review speed, feed, and depth of cut.
Run a test grind.
Compare finish, geometry, and spindle load.
Record the result.
Decide whether the wheel can continue or should be replaced.
This workflow turns wheel maintenance into a repeatable decision instead of a guess. A Grinding Wheel Dressing Machine supports this workflow by making the dressing step accurate, controlled, and repeatable.
Knowing when to dress or replace a grinding wheel is essential in CNC tool grinding. Dressing restores cutting ability, removes loading, improves surface finish, reduces heat, and helps correct wheel geometry. Replacement is required when the wheel is unsafe, too small, badly damaged, incorrectly specified, or no longer economical to maintain.
A Grinding Wheel Dressing Machine helps tool grinding workshops make better use of diamond and CBN grinding wheels. It can restore plane, angle, arc, and form profiles, support single or multiple wheel setups, and make wheel maintenance more repeatable. For manufacturers using CNC tool grinding machines to produce or regrind carbide tools, HSS tools, drills, milling cutters, forming tools, and rotary burrs, the right dressing strategy can reduce tool scrap, extend wheel life, and improve grinding consistency.
The best decision is not simply “dress more” or “replace sooner.” The best decision is based on wheel condition, tool quality, safety, process data, and production cost. With a clear inspection routine and a suitable Grinding Wheel Dressing Machine, CNC tool grinding shops can maintain better control over wheel life, tool geometry, and long-term grinding performance.
Yes. Over-dressing removes useful abrasive material and shortens wheel life. A Grinding Wheel Dressing Machine should be used with controlled dressing depth and frequency. The goal is to restore cutting performance without wasting the wheel.
Frequent dressing may indicate wrong wheel specification, poor coolant delivery, excessive feed rate, heavy loading, or unsuitable bond type. If the same issue returns quickly after dressing, review the full grinding process instead of only dressing more often.
Not always. If the wheel is only loaded and still structurally safe, dressing can often restore cutting ability. Replacement is needed if dressing no longer restores performance or if the wheel is damaged or worn beyond its usable range.
Tool burn may come from a dull grinding wheel, loading, poor coolant, high feed rate, or incorrect wheel speed. Dress the wheel first if it appears glazed or loaded, then check coolant, parameters, and machine stability.
Not every basic grinding operation requires one, but a Grinding Wheel Dressing Machine is highly valuable for CNC tool grinding workshops that use diamond or CBN wheels, complex profiles, multiple wheel packs, or high-precision tool regrinding.
