Why Grinding Wheels Fail in CNC Tool Grinding: 7 Common Causes

Grinding wheel failure is one of the most frustrating problems in CNC tool grinding. A grinding wheel may look normal from the outside, but once it begins to glaze, load, crack, vibrate, burn the tool edge, or lose its cutting ability, the entire grinding process becomes unstable. For manufacturers that rely on a CNC Tool Grinding Machine to produce carbide tools, drills, milling cutters, forming tools, taps, thread tools, or rotary burrs, grinding wheel failure is not only a tooling issue. It can directly affect tool geometry, cutting edge quality, surface finish, cycle time, machine efficiency, and production cost.

In many workshops, grinding wheel failure is first noticed through visible defects: burning on the tool surface, poor edge quality, unexpected chipping, chatter marks, excessive wheel wear, or inconsistent tool dimensions. However, the real cause often starts earlier. It may come from incorrect wheel selection, improper dressing, wrong wheel speed, poor coolant delivery, excessive feed pressure, unstable machine setup, or contamination in the grinding environment.

Modern CNC tool grinding has become more demanding. Cutting tools are becoming smaller, more precise, more complex, and more material-specific. Carbide tools, coated tools, micro drills, step tools, and customized cutting tools all require stable grinding performance. As a result, grinding wheel failure is now a key concern for tool manufacturers, tool regrinding shops, and production plants that want to control tool quality internally.

The good news is that most grinding wheel failure problems can be prevented. With the right wheel specification, correct machine parameters, stable coolant management, regular inspection, and a suitable Grinding Wheel Dressing Machine, manufacturers can greatly reduce wheel-related defects and extend grinding wheel service life.

What Does Grinding Wheel Failure Mean in CNC Tool Grinding?

Grinding wheel failure does not always mean the wheel breaks apart. In CNC tool grinding, grinding wheel failure can appear in many forms. A wheel may still rotate normally but fail to cut efficiently. It may generate too much heat, lose sharpness, load with workpiece material, produce poor tool finish, or create unstable grinding forces.

In other words, grinding wheel failure should be understood as any condition where the wheel can no longer perform its required grinding function safely, accurately, and efficiently.

Common forms of grinding wheel failure include:

For a CNC Tool Grinding Machine, grinding wheel failure is especially serious because the machine depends on repeatable wheel geometry and stable grinding force. A small change in wheel condition may affect flute shape, clearance angle, rake angle, edge radius, and final tool performance.

Why Grinding Wheel Failure Matters for Tool Manufacturers

In general surface grinding, a wheel problem may create a surface defect on a workpiece. In CNC tool grinding, the impact can be more complex. The grinding wheel is responsible for forming the functional cutting geometry of the tool. If grinding wheel failure occurs, the cutting tool may still look acceptable but perform poorly during machining.

For example, a carbide end mill may pass a basic visual inspection but fail earlier in production because the cutting edge was overheated during grinding. A drill may have unstable hole quality because grinding wheel failure caused uneven point geometry. A forming tool may not meet customer requirements because the wheel profile was not maintained by proper dressing.

Grinding wheel failure can create several business problems:

1. Higher tool rejection rate

2. More frequent wheel replacement

3. Longer setup and troubleshooting time

4. Lower CNC Tool Grinding Machine utilization

5. Reduced consistency between batches

6. Higher tool production cost

7. More customer complaints about tool performance

For this reason, solving grinding wheel failure is not only a technical issue. It is part of quality control, cost control, and workshop management.

Quick Diagnosis Table: Symptoms, Causes, and Solutions

1. Incorrect Grinding Wheel Selection

The first major cause of grinding wheel failure is incorrect wheel selection. In CNC tool grinding, the grinding wheel must match the tool material, tool geometry, grinding operation, required finish, and machine capability. If the wheel is not suitable for the application, grinding wheel failure may happen very quickly.

For carbide tools, diamond grinding wheels are commonly used because carbide is extremely hard and abrasive. For high-speed steel and many ferrous materials, CBN wheels are often more suitable. If the abrasive is wrong, the wheel may wear rapidly, generate excessive heat, or fail to cut efficiently.

Wheel bond also matters. Resin bond wheels may offer good cutting ability and surface finish in many tool grinding applications. Vitrified bond wheels can provide strong shape holding and coolant access. Metal bond wheels may offer high wear resistance, but they may require more careful dressing. If the bond is too hard for the application, grinding wheel failure can appear as glazing. If the bond is too soft, the wheel may wear too quickly and lose its profile.

Grit size is another key factor. A coarse grit wheel removes material faster but may leave a rougher surface. A fine grit wheel improves finish but may load or overheat if used for heavy stock removal. When a CNC Tool Grinding Machine is used for complex cutting tools, different operations may require different wheels. Rough grinding, flute grinding, gash grinding, clearance grinding, and finishing may not perform well with the same wheel specification.

How to prevent this type of grinding wheel failure:

• Match diamond wheels with carbide tool grinding applications.

• Match CBN wheels with suitable steel or ferrous tool applications.

• Select bond type according to tool material, coolant, and profile requirement.

• Use coarse grit for roughing and finer grit for finishing.

• Avoid using one wheel specification for every tool type.

• Record successful wheel specifications for each tool family.

When grinding wheel failure happens repeatedly on the same material, the first question should be: is the wheel designed for this material and operation? Many workshops adjust feed rate or coolant first, but the root cause may be the wrong wheel from the beginning.

2. Poor Dressing and Truing Practice

The second common cause of grinding wheel failure is poor dressing and truing. Dressing exposes fresh abrasive grains and restores cutting sharpness. Truing restores wheel geometry and concentricity. In CNC tool grinding, both are essential because the wheel must cut and keep its shape at the same time.

A wheel that is not dressed properly may become glazed. A glazed wheel has a smooth surface and loses cutting ability. Instead of cutting the tool material, it rubs against it. This increases grinding heat, creates burn marks, reduces surface quality, and accelerates grinding wheel failure.

A wheel that is not trued properly may create vibration, chatter, profile error, and dimensional instability. This is especially important when grinding flutes, radii, steps, and special tool forms. If the wheel profile is inaccurate, the tool geometry will also be inaccurate.

This is where a Grinding Wheel Dressing Machine becomes highly valuable. A dedicated Grinding Wheel Dressing Machine can help restore the wheel’s plane, angle, circular arc, and formed profile more accurately than manual dressing methods. For diamond and CBN grinding wheels used in CNC tool grinding, controlled dressing is often the difference between stable production and repeated grinding wheel failure.

Poor dressing can cause grinding wheel failure in two opposite ways. If the wheel is dressed too little, it becomes dull, loaded, or glazed. If the wheel is dressed too aggressively or too frequently, it may lose usable abrasive material too quickly and shorten wheel life. The goal is not simply to dress more often. The goal is to dress correctly.

Recommended dressing strategy:

For CNC tool grinding shops, dressing should be treated as a controlled process, not an emergency correction. A reliable dressing procedure can reduce grinding wheel failure, improve tool repeatability, and make CNC grinding results easier to predict.

3. Incorrect Wheel Speed and Spindle Settings

Wheel speed is another major cause of grinding wheel failure. Every grinding wheel has a recommended operating speed. If the wheel runs too fast, safety risk increases and the wheel may be damaged. If it runs too slowly, cutting efficiency drops, wheel wear may increase, and surface finish can suffer.

In CNC tool grinding, spindle speed must be matched with wheel diameter, wheel type, abrasive material, bond system, coolant condition, and grinding operation. A new wheel and a worn wheel may require different speed considerations because surface speed changes as wheel diameter changes.

Incorrect speed can cause several forms of grinding wheel failure:

• Wheel glazing due to poor cutting action

• Excessive heat because the wheel rubs instead of cuts

• Poor surface finish because chip formation is unstable

• Wheel wear because the abrasive is not working in the correct range

• Safety risk if maximum wheel speed is exceeded

A CNC Tool Grinding Machine provides controlled spindle speed, but operators still need to set parameters correctly. Automation does not remove the need for process knowledge. The machine can repeat a bad process just as accurately as a good one.

To prevent speed-related grinding wheel failure, manufacturers should:

• Check the maximum operating speed marked on the wheel.

• Confirm the machine spindle speed before mounting a wheel.

• Adjust speed when wheel diameter changes significantly.

• Avoid copying speed settings from a different wheel type.

• Keep parameter records for each wheel and tool material.

• Train operators to understand surface speed, not only RPM.

In modern workshops, digital process records are becoming more important. Instead of depending on operator memory, many companies now standardize wheel speed, feed, dressing, and coolant settings for each tool family. This helps reduce grinding wheel failure caused by inconsistent setup.

4. Poor Coolant Delivery and Heat Control

Heat is one of the most damaging factors in CNC tool grinding. Many cases of grinding wheel failure are related to poor coolant delivery, wrong coolant concentration, blocked nozzles, insufficient flow, or coolant that does not reach the actual grinding zone.

When coolant is not applied correctly, the wheel-workpiece contact area becomes too hot. The wheel may load, glaze, or wear unevenly. The tool may show discoloration, microcracks, softening, or edge damage. In carbide tool grinding, heat control is critical because edge quality directly affects cutting performance.

Coolant does more than cool the workpiece. It also helps remove chips and grinding swarf from the wheel surface. If swarf stays in the wheel pores, wheel loading occurs. Once loading starts, the wheel cuts less effectively, friction increases, and grinding wheel failure becomes more likely.

Common coolant-related causes of grinding wheel failure include:

• Coolant nozzle aimed incorrectly

• Coolant pressure too low

• Coolant concentration outside the recommended range

• Contaminated coolant with oil, sludge, or fine particles

• Poor filtration

• Coolant flow blocked by tool geometry or wheel guard

• Dry grinding when wet grinding is required

A CNC Tool Grinding Machine may have a capable coolant system, but the system must still be maintained. Operators should inspect nozzle position, flow direction, filter condition, tank cleanliness, and coolant concentration regularly.

A practical coolant checklist:

As tool grinding becomes more automated, coolant monitoring is becoming a more important trend. Shops that run long production cycles or lights-out grinding need stable coolant performance because one coolant problem can damage many tools before an operator notices it.

5. Excessive Feed Rate, Grinding Pressure, or Stock Removal

Another common cause of grinding wheel failure is pushing the wheel too hard. High feed rate, excessive grinding pressure, and too much stock removal can overload the wheel. Instead of allowing abrasive grains to cut properly, the process generates heavy friction, heat, wheel wear, and unstable forces.

In CNC tool grinding, this problem often appears when a shop tries to reduce cycle time without adjusting the full process. Faster grinding is not always more productive. If aggressive parameters cause grinding wheel failure, tool rejection, wheel replacement, or machine downtime, the total cost may increase.

Excessive grinding pressure can lead to:

• Tool burning

• Edge chipping

• Wheel loading

• Wheel glazing

• Poor surface finish

• Higher spindle load

• Shorter wheel life

• Dimensional error

At the same time, parameters that are too conservative can also create problems. If feed is too low, the wheel may rub instead of cut. This can also cause glazing and heat. The best process is not simply “slow and safe” or “fast and productive.” It is a balanced combination of wheel specification, wheel speed, feed rate, depth of cut, coolant, and dressing condition.

For a CNC Tool Grinding Machine, parameter optimization should be based on tool type and grinding operation. Flute grinding, end face grinding, clearance grinding, and form grinding all have different contact conditions. A parameter that works for one operation may create grinding wheel failure in another.

Recommended approach:

1. Start with wheel supplier or machine supplier recommendations.

2. Test parameters on a controlled batch.

3. Monitor spindle load, surface finish, and tool edge condition.

4. Adjust feed and depth of cut gradually.

5. Record the final stable process.

6. Review parameters when wheel diameter, tool material, or coolant changes.

CNC grinding should be treated as a system. Grinding wheel failure often happens when one parameter is changed without considering the rest of the system.

6. Vibration, Imbalance, and Poor Machine Rigidity

Vibration is one of the most visible signs of grinding wheel failure. It can appear as chatter marks, waves, noise, unstable surface finish, or repeated tool geometry errors. In CNC tool grinding, vibration can come from the wheel, spindle, tool holding system, machine base, fixture, dressing condition, or grinding parameters.

An out-of-true wheel can act as a vibration source. An imbalanced wheel can create unstable grinding forces. A worn spindle or poor mounting condition can make the problem worse. Even if the wheel specification is correct, poor mechanical stability can still cause grinding wheel failure.

A high-quality CNC Tool Grinding Machine should provide stable motion, rigid structure, accurate spindle control, and repeatable positioning. However, machine condition must be maintained. Long-term production, coolant contamination, wheel changes, and fixture wear can gradually reduce stability.

Common vibration-related causes of grinding wheel failure include:

• Wheel not balanced correctly

• Wheel not trued after mounting

• Flange damage or dirt on mounting surfaces

• Poor wheel adapter condition

• Loose tool holding

• Spindle wear

• Incorrect speed creating resonance

• Excessive wheel overhang

• Unstable floor or machine installation

If chatter appears, the solution is not always to replace the wheel. A better troubleshooting method is to check the full grinding system.

Troubleshooting sequence:

A Grinding Wheel Dressing Machine can help reduce vibration-related grinding wheel failure by restoring accurate wheel geometry. When the wheel runs true, grinding force becomes more stable, surface quality improves, and tool geometry becomes more repeatable.

7. Poor Storage, Handling, Inspection, and Maintenance

The final common cause of grinding wheel failure is poor wheel care before the wheel even reaches the machine. Grinding wheels must be stored, handled, inspected, mounted, and maintained correctly. Damage during transport, moisture exposure, incorrect stacking, impact, or careless mounting can create hidden risks.

A wheel may fail because of a small crack, damaged edge, contaminated surface, or incorrect mounting pressure. In CNC tool grinding, this is especially risky because high-speed spindles and precision grinding operations place serious demands on the wheel.

Poor storage and handling can cause:

• Cracks

• Edge damage

• Bond weakening

• Moisture-related deterioration

• Wheel imbalance

• Mounting error

• Unsafe operation

Before mounting any wheel, operators should inspect it carefully. Conventional abrasive wheels often require a ring test where applicable. Superabrasive wheels should also be checked for visible damage, mounting surface condition, and wheel label information. The machine speed should never exceed the maximum speed marked on the wheel.

Maintenance also includes keeping the grinding area clean. Oil, dust, metal particles, carbide swarf, and coolant sludge can all contribute to grinding wheel failure. Contamination can cause wheel loading, poor finish, and unstable grinding behavior.

A practical maintenance routine:

• Store wheels in a dry, stable environment.

• Keep wheels away from impact and vibration during storage.

• Do not stack wheels in a way that causes deformation or edge damage.

• Inspect every wheel before mounting.

• Clean flanges and adapters before installation.

• Confirm spindle speed and wheel speed rating.

• Run the wheel safely before starting production.

• Keep coolant and grinding area clean.

• Record wheel life and failure patterns.

Grinding wheel failure is easier to prevent when wheel management is standardized. For production teams, the goal is to make wheel handling predictable and traceable.

The Role of a Grinding Wheel Dressing Machine in Reducing Failure

A Grinding Wheel Dressing Machine is not only an accessory. For many CNC tool grinding applications, it is an important part of the grinding process. The condition of the grinding wheel determines how accurately and efficiently the CNC Tool Grinding Machine can produce or regrind cutting tools.

When a wheel loses shape, sharpness, or balance, the machine cannot fully compensate through CNC motion alone. The machine may still follow the programmed path, but the actual grinding result will be affected by wheel condition. This is why dressing and truing are so important.

A Grinding Wheel Dressing Machine helps reduce grinding wheel failure by:

• Restoring sharp abrasive cutting points

• Removing loaded or glazed wheel surface

• Correcting wheel profile error

• Improving wheel concentricity

• Supporting accurate plane, angle, arc, and form dressing

• Extending usable wheel life

• Improving consistency between tool batches

For diamond and CBN wheels used in CNC tool grinding, controlled dressing can be especially important. These wheels are often more expensive than conventional wheels, so extending wheel life has direct cost benefits. More importantly, accurate wheel dressing helps maintain tool geometry and grinding repeatability.

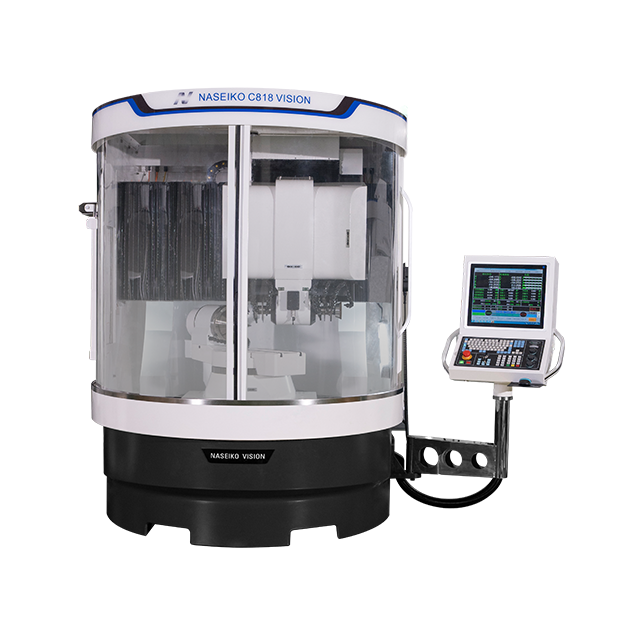

How a CNC Tool Grinding Machine Helps Control Grinding Wheel Failure

A CNC Tool Grinding Machine provides the controlled motion, repeatable positioning, and multi-axis grinding capability needed for modern cutting tool production. However, grinding wheel failure can still occur if process conditions are not controlled. The machine is only one part of the grinding system.

A suitable CNC Tool Grinding Machine helps reduce grinding wheel failure by offering:

• Stable spindle control

• Repeatable axis movement

• Accurate tool positioning

• Consistent grinding paths

• Better control of feed and speed

• Support for different tool geometries

• Integration with coolant and dressing processes

In tool rooms and manufacturing plants, a CNC Tool Grinding Machine can also help standardize tool regrinding. Instead of depending on manual grinding skill alone, manufacturers can use programmed grinding cycles to maintain tool consistency. This is especially useful for carbide tool regrinding, where edge geometry and surface quality must remain stable over multiple regrinding cycles.

Still, operators must remember that CNC control does not eliminate grinding wheel failure. The wheel must still be selected, dressed, cooled, mounted, and maintained correctly.

Latest Trends: Why Grinding Wheel Failure Is Getting More Attention

Grinding wheel failure is becoming a more important topic because CNC tool grinding is moving toward higher precision, higher automation, and more demanding tool materials.

Several trends are increasing the importance of wheel control:

More carbide and hard material tools

Carbide cutting tools are widely used in high-speed machining, 3C manufacturing, mold making, aerospace, medical, and automotive production. These tools require diamond grinding wheels and stable grinding conditions. If grinding wheel failure occurs, tool edge quality can suffer quickly.

More complex tool geometries

Modern tools often have special flutes, steps, radii, chip breakers, and customized profiles. These features depend on accurate wheel shape. A small wheel profile error can lead to a serious tool geometry problem.

More tool regrinding inside factories

Many manufacturers are bringing tool regrinding in-house to reduce tool cost and improve production continuity. This makes CNC Tool Grinding Machine selection more important, but it also requires better control of grinding wheel failure.

More lights-out and automated grinding

When grinding runs with less operator supervision, process stability becomes critical. A wheel problem that would be noticed immediately in manual operation may continue for many cycles in automated production. Preventing grinding wheel failure before it happens becomes more valuable than reacting afterward.

More focus on cost per tool

Manufacturers are no longer looking only at machine price or wheel price. They are looking at cost per finished tool. Grinding wheel failure increases cost through rejected tools, wasted wheel material, downtime, inspection time, and unstable output.

Preventive Checklist for CNC Tool Grinding Shops

The best way to reduce grinding wheel failure is to build a repeatable preventive process.

Conclusion

Grinding wheel failure in CNC tool grinding is rarely caused by one single factor. It usually comes from a combination of wheel selection, dressing condition, speed, coolant, feed rate, machine stability, and maintenance practice. For manufacturers using a CNC Tool Grinding Machine, controlling grinding wheel failure is essential for producing consistent cutting tools, reducing tool rejection, improving wheel life, and lowering production cost.

The seven most common causes of grinding wheel failure are incorrect wheel selection, poor dressing and truing, wrong wheel speed, poor coolant delivery, excessive feed or pressure, vibration and imbalance, and poor storage or maintenance. Each problem can create visible defects such as burning, chatter, rough finish, short wheel life, dimensional drift, and poor tool performance.

A reliable CNC Tool Grinding Machine gives manufacturers the control needed for repeatable grinding. A suitable Grinding Wheel Dressing Machine helps maintain the wheel condition required for precision tool production. When both are used as part of a complete grinding process, manufacturers can reduce grinding wheel failure and achieve more stable, efficient, and predictable tool grinding results.

For tool manufacturers, the goal is not only to fix grinding wheel failure after it appears. The better goal is to design a process where grinding wheel failure becomes less frequent, easier to diagnose, and easier to prevent.

FAQs About Grinding Wheel Failure in CNC Tool Grinding

1. How can I tell whether grinding wheel failure is caused by the wheel or the CNC machine?

Check the wheel first for glazing, loading, cracks, uneven wear, profile loss, and poor dressing condition. Then check the CNC Tool Grinding Machine for spindle stability, fixture rigidity, wheel mounting, coolant flow, and parameter settings. If the same defect appears with different wheels, the machine setup or process parameter may be the stronger cause.

2. Can a Grinding Wheel Dressing Machine improve tool edge quality?

Yes. A Grinding Wheel Dressing Machine can improve tool edge quality by restoring wheel sharpness and profile accuracy. In CNC tool grinding, a properly dressed wheel cuts more consistently, generates less heat, and helps maintain accurate tool geometry.

3. Why does grinding wheel failure happen more often when regrinding carbide tools?

Carbide is hard and abrasive, so it places high demand on the grinding wheel. If the diamond wheel is not suitable, not dressed correctly, or not cooled properly, grinding wheel failure may appear as glazing, loading, burning, or rapid wear. Regrinding also deals with worn tool surfaces, which may create inconsistent contact conditions.

4. Is wheel dressing always the best solution for grinding wheel failure?

No. Dressing is important, but it is not the only solution. If grinding wheel failure is caused by wrong wheel selection, incorrect speed, poor coolant, excessive feed, or machine vibration, dressing alone will not solve the root problem. A full process check is usually required.

5. How often should a CNC tool grinding shop review grinding wheel failure records?

A production shop should review grinding wheel failure records regularly, especially when changing tool materials, wheel specifications, coolant, machine parameters, or production volume. Tracking failure patterns helps identify whether the problem is related to a specific wheel, machine, operator, tool type, or grinding operation.
