How to Use a Tool Profiler Before CNC Tool Grinding

Can one small tool profile error affect the whole grinding result? In many CNC tool grinding jobs, the answer is yes. A worn edge, wrong radius, or hidden profile deviation can lead to poor cutting performance after regrinding.

That is why using a Tool Profiler before grinding is an important step in tool grinding preparation. It helps operators check tool condition, measure key geometry, and decide how much material should be removed before the tool enters a CNC tool grinding machine.

In this article, you will learn how to use a Tool Profiler before CNC tool grinding. We will cover tool profiler setup, cutting tool measurement, tool geometry inspection, and how profiler data supports a more accurate CNC tool grinding setup.

Why Use a Tool Profiler Before CNC Tool Grinding?

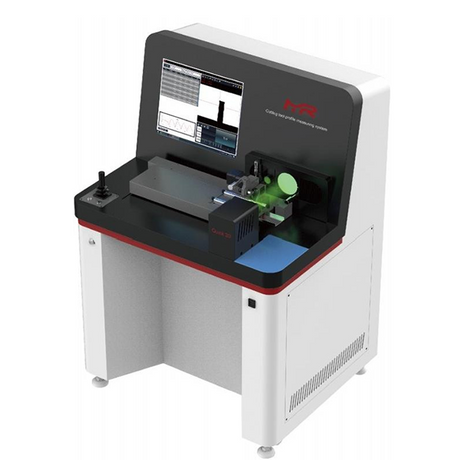

A Tool Profiler is useful because it gives operators a clear starting point. It helps them understand the tool before choosing the grinding path.

It Confirms the Actual Tool Condition

A cutting tool may look acceptable at first glance. Yet the cutting edge may have micro-chipping, uneven wear, or profile loss.

A Tool Profiler helps inspect these issues before grinding. It supports accurate cutting tool measurement and reduces visual judgment.

This is important for expensive carbide tools. It is also important for tools used in 3C manufacturing, mold work, and precision machining.

It Reduces CNC Tool Grinding Setup Errors

A poor setup can waste time quickly. Operators may choose the wrong grinding allowance, wheel, or program.

A Tool Profiler helps prevent these errors. It provides profile data before the tool reaches the grinding machine.

Grinding preparation also depends on the correct blanks, wheels, workholding, thermal stability, and measurement method. These factors all affect the final grinding result.

It Helps Avoid Over-Grinding

Over-grinding removes too much material. It shortens tool life and increases tooling cost.

A profiler shows how much wear exists. Then operators can remove only the needed material.

This is valuable for tool rooms. It also helps factories manage repeated tool regrinding.

Step-by-Step Guide: How to Use a Tool Profiler Before CNC Tool Grinding

This is the most important part of the process. A stable tool grinding preparation workflow should be simple, repeatable, and easy to train.

Step 1: Clean the Cutting Tool Before Measurement

Clean the tool before any measurement starts. Remove coolant, oil, dust, chips, and grinding residue.

Pay attention to the shank, flute, cutting edge, and tool tip. Dirt can change the profile image and create false readings.

Do not skip this step. A dirty tool can make a good tool look defective.

Step 2: Identify the Tool Type and Inspection Target

Next, confirm the tool type. It may be an end mill, drill, reamer, forming cutter, or rotary burr.

Then define the inspection target. You may need to check wear, diameter, corner radius, flute shape, or form accuracy.

This step keeps the tool profile measurement focused. It also avoids collecting data operators do not need.

Step 3: Mount the Tool Securely

Place the tool in the correct holder or fixture. The tool should sit firmly during inspection.

Poor mounting can create false runout. It can also distort the profile image.

This same logic applies to grinding. Stable workholding is critical in precision grinding workflows.

Step 4: Align the Tool Axis

Set the tool axis correctly. Confirm the datum before recording measurement values.

Common references include the shank, end face, tool tip, or outside diameter. Use the same reference each time.

This improves repeatability. It also helps later comparison across different tool batches.

Step 5: Capture the Tool Profile

Now capture the tool profile. Check the full cutting area, not only one visible edge.

A useful cutting tool profile measurement may include:

This data gives the operator a clear tool condition report.

Step 6: Compare the Result With Required Geometry

Compare the measured profile with the drawing, CAD data, tool standard, or original tool record.

If the tool is still close to specification, light regrinding may be enough. If the profile is badly damaged, replacement may be safer.

This is where the tool geometry inspection becomes practical. It supports a real production decision.

Step 7: Transfer the Result Into the Grinding Plan

Finally, use the profiler result in the grinding plan. Decide the grinding allowance, wheel type, program, and inspection sequence.

A stable CNC tool grinding machine can then process the tool more predictably. Machines with rigid structures, controlled spindle performance, and multi-axis capability can support repeatable grinding.

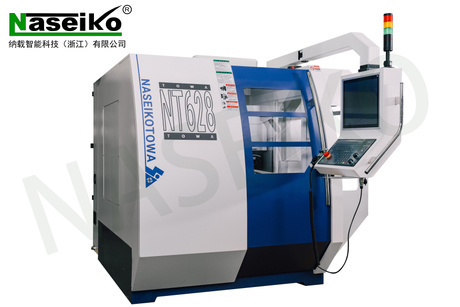

NASEIKO CNC tool grinding machines can fit this workflow naturally. They support cutting tool manufacturing and regrinding tasks across daily production.

Tip：Create one standard profiler setup sheet for every repeated tool family.

What Tool Geometry Should You Check With a Tool Profiler?

A Tool Profiler should focus on geometry that affects grinding quality. The goal is not to measure everything. The goal is to measure what changes the grinding decision.

Cutting Edge Wear and Chipping

Check the cutting edge first. Look for rounding, small chips, cracks, and uneven wear.

These defects change cutting force. They can also reduce surface quality after the tool returns to machining.

Minor damage can often be removed by regrinding. Deep cracks may make the tool unsafe for reuse.

Tool Diameter and Profile Deviation

Measure the outside diameter and profile shape. This shows how much material has been lost.

For form tools, profile deviation is even more important. The tool shape directly affects the machined part shape.

Accurate profile control is also important in CNC machining processes. Profile machining depends heavily on toolpath accuracy, tool rigidity, and stable engagement.

Tool Tip and Corner Radius

Corner radius affects cutting finish and part geometry. It also changes tool load during cutting.

A worn radius may cause burrs, poor finish, or wrong part dimensions. A profiler helps confirm whether the radius can be restored.

Runout and Symmetry Clues

A profiler can also reveal symmetry problems. Uneven flute shape or eccentric profile marks may suggest runout.

Runout affects grinding balance. It may also reduce cutting performance after regrinding.

How Tool Profiler Data Improves CNC Tool Grinding Setup

Measurement only creates value when operators use it. The profiler result should guide the CNC tool setup procedure.

Choosing the Right Grinding Allowance

The grinding allowance should match actual tool damage. Too little allowance leaves defects. Too much allowance wastes material.

The Tool Profiler helps operators choose a practical allowance. This is especially useful for carbide tools and special cutters.

For example, a shop may set a light regrind allowance for minor edge wear. A deeper allowance may be needed for chipped corners.

Selecting the Grinding Wheel and Process

Tool material affects grinding wheel choice. So do hardness, surface requirements, stock removal, and cycle time.

Grinding references often stress this point. Material, surface quality, removal amount, and cycle time all influence wheel selection.

Profiler data helps match the process to the tool condition. It also helps avoid using one grinding approach for every tool.

Adjusting the CNC Grinding Program

Use the profile result to adjust the grinding path. The program may need small corrections for diameter, tip shape, or flute geometry.

A staged process often works better. Rough grinding removes damage. Semi-finishing stabilizes geometry. Finishing controls final accuracy.

This logic is also common in CNC profile machining. Roughing, semi-finishing, finishing, and super-finishing each serve different quality goals.

Reducing Trial Grinding

Without measurement, operators may rely on trial grinding. This wastes machine time and increases scrap risk.

A Tool Profiler before grinding reduces trial work. It gives the grinding machine better starting data.

Common Mistakes When Using a Tool Profiler Before Grinding

A Tool Profiler improves control only when operators use it correctly. Several mistakes can reduce its value.

Measuring a Dirty Tool

A dirty edge can hide real wear. It can also create false profile lines.

Clean the tool before inspection. Then measure it under stable conditions.

Temperature also matters in precision work. Even small thermal changes can affect micron-level results.

Ignoring Tool Profiler Calibration Steps

Calibration should be part of routine work. Operators should follow the maker’s procedure.

Basic tool profiler calibration steps may include checking the reference standard, verifying the optical path, and confirming measurement repeatability.

Do not wait until results look strange. Build calibration into the inspection schedule.

Checking Only One Feature

Some teams only check diameter. This is not enough for precision regrinding.

A tool may keep its diameter but lose edge shape. It may also have chipped corners or profile distortion.

Use a wider tool geometry check before grinding. It should match the tool function.

Failing to Save Measurement Records

A one-time measurement helps one tool. A saved record helps the whole process.

Keep records for tool families, repeated jobs, and customer-specific tools. They help track wear patterns over time.

When Should a Tool Be Reground After Tool Profiler Inspection?

The profiler result should lead to a clear decision. The operator should choose regrind, adjust, reject, or replace.

Regrind When Wear Is Controlled

Regrinding makes sense when edge wear is visible but limited. The tool body should still be sound.

This is common for carbide end mills, drills, and forming tools. The profiler confirms whether enough material remains.

Regrind When Profile Error Affects Part Accuracy

Some tools shape the final workpiece profile. If the tool profile changes, the part profile changes too.

This is common in forming cutters and special tools. A Tool Profiler helps protect part accuracy before production restarts.

Replace When Damage Is Too Deep

Not every tool should be reground. Deep cracks, broken flutes, severe burn, or unstable shanks may require replacement.

Grinding such tools may waste time. It may also create unsafe cutting performance.

Consider Cost and Tool Value

High-value tools are often worth inspecting carefully. Standard low-cost tools may not justify complex regrinding.

A simple decision table can help.

Tip：Define rejection rules before operators inspect production tools.

Tool Profiler vs Visual Inspection Before CNC Tool Grinding

Visual inspection still has value. Yet it should not replace measurement.

Visual Inspection Is Fast

Operators can quickly see broken edges, heavy wear, or missing material. This is useful during receiving or sorting.

It is also low-cost. No complex setup is needed.

However, visual inspection depends on experience. Two operators may judge the same tool differently.

A Tool Profiler Gives Objective Data

A Tool Profiler provides measurable results. It can show profile shape, radius change, and size deviation.

This makes decisions easier to explain. It also supports quality records for B2B customers.

For precision jobs, measurement equipment is essential. Accurate inspection is a key part of closing the loop after grinding.

Best Practice: Use Both Methods

Start with visual inspection. Remove tools with obvious severe damage.

Then use the profiler for tools that need accurate regrinding. This keeps the workflow efficient.

How to Build a Practical Pre-Grinding Workflow With a Tool Profiler

A good workflow should be easy to repeat. It should also connect inspection with grinding action.

Create a Standard Inspection Checklist

A checklist helps operators avoid missed steps. It also makes training easier.

A practical checklist may include:

• Clean the tool.

• Confirm the tool type.

• Select the inspection target.

• Mount the tool securely.

• Align the tool axis.

• Capture the profile.

• Compare geometry.

• Record the result.

• Choose the grinding plan.

This creates a stable tool grinding measurement process.

Define Acceptance Rules

Each factory should define its own limits. These limits may depend on tool material, tool type, and customer tolerance.

For example, a forming tool may need stricter profile limits. A roughing tool may allow more wear.

Some values may require internal validation. For example, maximum chip depth or minimum tool diameter should be verified by shop data.

Connect Results With CNC Tool Grinding Machines

The profiler should not sit outside production. Its result should guide grinding setup.

Operators can use the result to select wheel type, grinding allowance, and CNC program. Then the CNC tool grinding machine executes the process.

This is where the profiler and grinding machine work together. The profiler finds the condition. The machine restores the geometry.

Record Data for Tool Life Management

Saved records help teams see wear patterns. They also support better purchasing and maintenance planning.

Over time, data can show which tools fail early. It can also reveal unstable applications or wrong cutting parameters.

Conclusion

Using a Tool Profiler before CNC tool grinding helps manufacturers grind with more confidence. It confirms tool condition, measures profile geometry, and supports better process decisions.

The best workflow is simple. Clean the tool, mount it correctly, align the axis, capture the profile, compare the result, and transfer the data into the grinding plan.

This process improves tool measurement before CNC grinding. It also reduces setup errors, over-grinding, trial grinding, and avoidable tool loss.

A Tool Profiler does not replace a skilled operator. It gives the operator better information.

When paired with stable CNC tool grinding machines, it supports more repeatable tool regrinding. It also helps tool rooms and production teams manage cutting tools with better control.

Measure first. Grind second. That simple habit can protect tool value and improve daily production quality.

FAQ

Q: What does a Tool Profiler check before grinding?

A: It checks tool profile, edge wear, diameter, radius, and geometry before CNC tool grinding.

Q: How do you use a Tool Profiler before grinding?

A: Clean the tool, mount it securely, align the axis, capture the profile, then review the data.

Q: Why is tool geometry inspection important?

A: It helps prevent over-grinding, setup errors, and poor cutting performance after regrinding.

Q: Does a Tool Profiler reduce grinding cost?

A: Yes. It can reduce scrap, trial grinding, and unnecessary tool replacement.

Q: Tool Profiler vs visual inspection: which is better?

A: Visual checks find obvious damage. A Tool Profiler gives more accurate measurement data.

Q: What if the profiler shows profile deviation?

A: Adjust the grinding allowance, CNC program, or replace the tool if damage is too severe.
