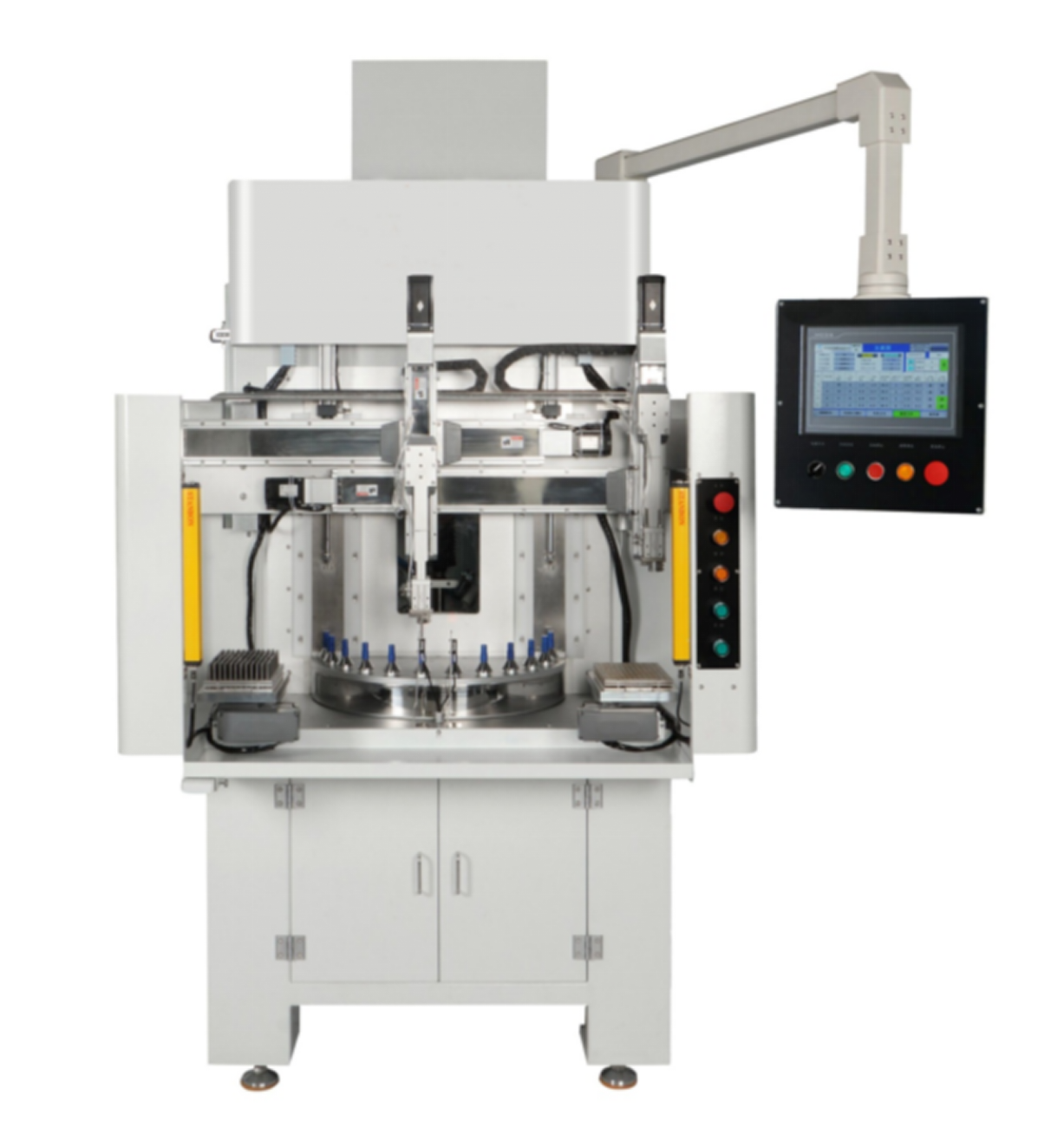

NZ-16X Auto Jet Polishing Passivation

Application:The equipment is mainly for wire cone, tungsten steel milling cutter drill head and other tool edge passivation and polishing.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • NZ-16X

  • NASEIKO

List of main accessories

No.

Project

Model

Brand

Qty

Note.

1

Technical part

jacking motor

400W

Inovance

1

servo

2

Motor rotary motor

400W

Inovance

1

servo

3

Turn the table servo

750W

Special

1

servo

4

Up and unloading manipulator modules

Multi

Nachi

1 set

The 6-axis mechanical assembly hand

5


Electrical part

PLC

H5U

Inovance

1 set


6

touch screen

10inch

Kunluntongtai

1


7

Air control

Multi

SMC/Yadke

1 set


8

button switch


Schneider

1 set


9

Contactor Relay


Schneider

1 set



1. The equipment is equipped with 16 stations can process two stations at each time, processing at the same time can greatly improve the processing efficiency;

The equipment is equipped with 4 shotguns, each of which can be controlled separately, and 2.3 the pressure parameters can be set on the touch screen and can be full of various processes and efficiency processing requirements;

2. The processing process can be divided into 4 sections for processing, each section of the processing position, processing times, pressure, speed, direction and other parameters can be set respectively;

3. The equipment takes a variety of measures to eliminate static electricity and eliminate the instability of abrasive agglomeration due to static electricity.

4. This machine is an integrated design with simple and reliable structure, easy to operate, good processing efficiency and low energy.

5.  The main parts of this machine adopt high quality parts, which are safe and reliable, and have a long service life.

6.  Can realize the manipulator and semi-automatic processing two mode selection.

7. Independent ventilation and dust removal system meets the environmental protection requirements.
